element <confirmationStatus> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ConfirmationStatus
Content:	complex, 3 attributes, 12 elements
Defined:	globally in fpml-confirmation-processes-5-3.xsd; see XML source
Used:	never

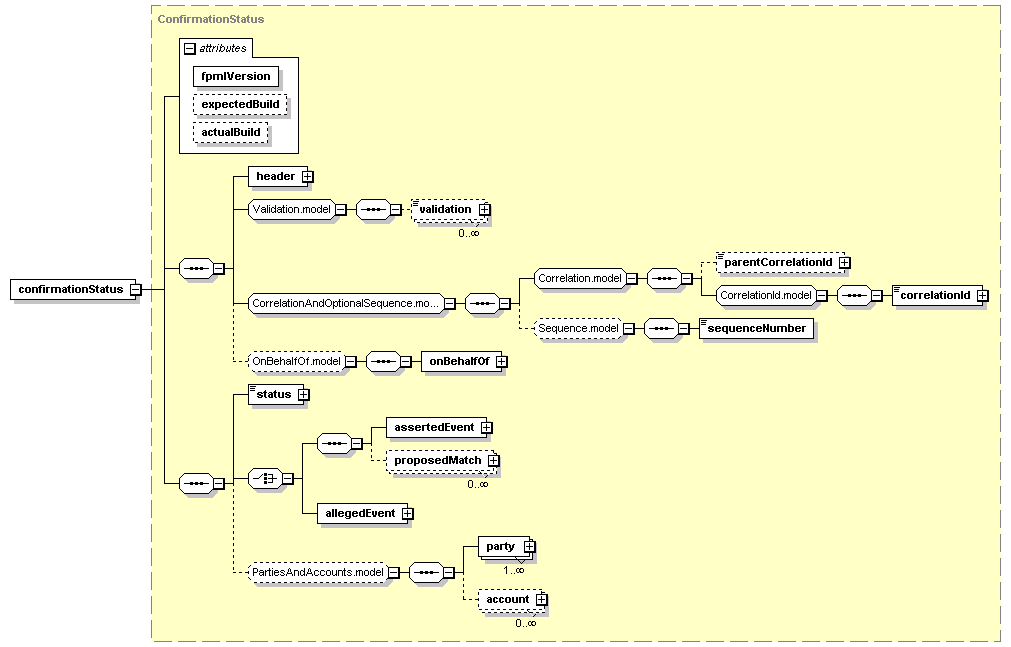

Content Model Diagram

XML Representation Summary

<confirmationStatus

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"2"

Content:

header, validation*, parentCorrelationId?, correlationId, sequenceNumber?, onBehalfOf?, status, ((assertedEvent, proposedMatch*) | allegedEvent), (party+, account*)?

</confirmationStatus>

Content model elements (12):

header (defined in ResponseMessage complexType),

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

party,

proposedMatch,

sequenceNumber (defined in Sequence.model group),

status (in confirmationStatus),

validation

Annotation

The confirmationStatus message provides the status of the matching process: matched, mismatched, unmatched, or alleged. It may also provide the best fit trade(s) or event(s) as result of the matching process.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="confirmationStatus" type="ConfirmationStatus"/>
