element <requestConfirmation> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RequestConfirmation
Content:
complex, 3 attributes, 20 elements
Defined:
globally in fpml-confirmation-processes-5-3.xsd; see XML source
Used:
never

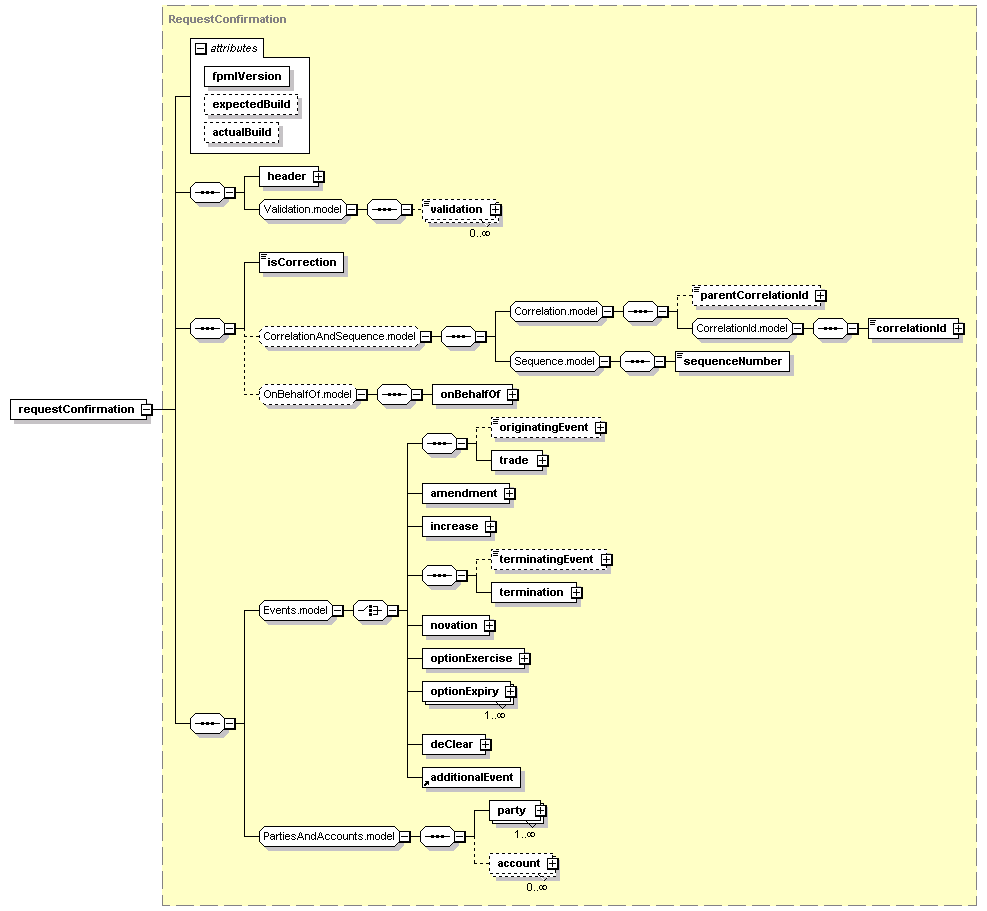

Content Model Diagram
XML Representation Summary
<requestConfirmation

fpmlVersion
 =
 xsd:token
expectedBuild
 =
 xsd:positiveInteger
actualBuild
 =
 "2"
    >

Content:
 header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, ((originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | optionExercise | optionExpiry+ | deClear | additionalEvent), party+, account*
</requestConfirmation>
Content model elements (20):
account,
additionalEvent,
amendment,
correlationId,
deClear,
header (defined in RequestMessage complexType),
increase,
isCorrection (defined in CorrectableRequestMessage complexType),
novation,
onBehalfOf (defined in OnBehalfOf.model group),
optionExercise,
optionExpiry (defined in Events.model group),
originatingEvent (defined in Events.model group),
parentCorrelationId,
party,
sequenceNumber (defined in Sequence.model group),
terminatingEvent (defined in Events.model group),
termination,
trade (defined in Events.model group),
validation
Annotation
The confirmation process starts with the requestConfirmation message. The message may be used to request the confirmation of a new trade or any other event supported by FpML such as novation, terminations, amendments, etc.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="requestConfirmation" type="RequestConfirmation"/>
