group "TradeReferenceInformationContents.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
6 elements
Defined:
globally in fpml-business-events-5-3.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 1 location

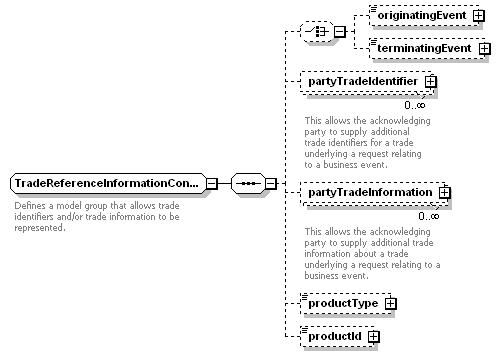

Content Model Diagram
Complex Content Model
(originatingEvent? | terminatingEvent?)?, partyTradeIdentifier*, partyTradeInformation*, productType?, productId?
Content Model Elements (6):
originatingEvent (in tradeReferenceInformation), productId (in tradeReferenceInformation),
Known Usage Locations
Annotation
Defines a model group that allows trade identifiers and/or trade information to be represented.
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="TradeReferenceInformationContents.model">
<xsd:sequence>
<xsd:choice minOccurs="0">
<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>
</xsd:choice>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyTradeIdentifier" type="PartyTradeIdentifier"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyTradeInformation" type="PartyTradeInformation"/>
<xsd:element minOccurs="0" name="productType" type="ProductType"/>
<xsd:element minOccurs="0" name="productId" type="ProductId"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 6/6)
originatingEvent
Type:
OriginatingEvent, simple content
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (see within schema source)
<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>
partyTradeIdentifier
Type:
PartyTradeIdentifier, complex content
This allows the acknowledging party to supply additional trade identifiers for a trade underlying a request relating to a business event.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyTradeIdentifier" type="PartyTradeIdentifier"/>
partyTradeInformation
Type:
PartyTradeInformation, complex content
This allows the acknowledging party to supply additional trade information about a trade underlying a request relating to a business event.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyTradeInformation" type="PartyTradeInformation"/>
productId
Type:
ProductId, simple content
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (see within schema source)
<xsd:element minOccurs="0" name="productId" type="ProductId"/>
productType
Type:
ProductType, simple content
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (see within schema source)
<xsd:element minOccurs="0" name="productType" type="ProductType"/>
terminatingEvent
Type:
TerminatingEvent, simple content
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (see within schema source)
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>
