complexType "Exposure"

Namespace:	http://www.fpml.org/FpML-5/reporting
Content:	complex, 3 elements
Defined:	globally in fpml-collateral-processes-5-3.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

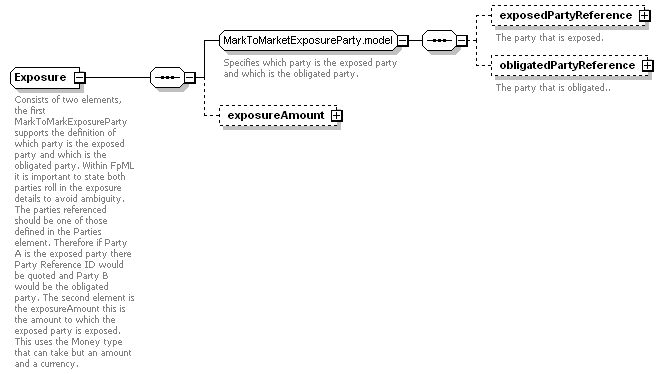

Content Model Diagram

XML Representation Summary

<...>

Content:

exposedPartyReference?, obligatedPartyReference?, exposureAmount?

</...>

Content Model Elements (3):

exposedPartyReference, exposureAmount, obligatedPartyReference

All Direct / Indirect Based Elements (1):

exposure (in markToMarket)

Known Usage Locations

As direct type of elements (1):
exposure (in markToMarket)

Annotation

Consists of two elements, the first MarkToMarkExposureParty supports the definition of which party is the exposed party and which is the obligated party. Within FpML it is important to state both parties roll in the exposure details to avoid ambiguity. The parties referenced should be one of those defined in the Parties element. Therefore if Party A is the exposed party there Party Reference ID would be quoted and Party B would be the obligated party. The second element is the exposureAmount this is the amount to which the exposed party is exposed. This uses the Money type that can take but an amount and a currency.

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="Exposure">

<xsd:sequence>

<xsd:group ref="MarkToMarketExposureParty.model"/>

<xsd:element minOccurs="0" name="exposureAmount" type="Money"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/3)

exposureAmount

Type:

Money, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="exposureAmount" type="Money"/>
