group "DisputedDetails.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
3 elements
Defined:
globally in fpml-collateral-processes-5-3.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

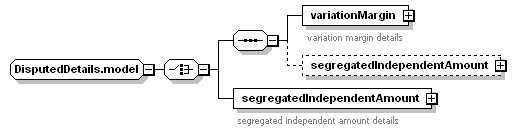

Content Model Diagram
Complex Content Model
(variationMargin, segregatedIndependentAmount?) | segregatedIndependentAmount
Content Model Elements (3):
segregatedIndependentAmount (in disputeNotification), variationMargin (in disputeNotification)
Known Usage Locations
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="DisputedDetails.model">
<xsd:choice>
<xsd:sequence>
<xsd:element name="variationMargin" type="DisputedCollateral"/>
<xsd:element minOccurs="0" name="segregatedIndependentAmount" type="DisputedCollateral"/>
</xsd:sequence>
<xsd:element name="segregatedIndependentAmount" type="DisputedCollateral"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
segregatedIndependentAmount
Type:
DisputedCollateral, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="segregatedIndependentAmount" type="DisputedCollateral"/>
segregatedIndependentAmount
Type:
DisputedCollateral, complex content
segregated independent amount details
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="segregatedIndependentAmount" type="DisputedCollateral"/>
variationMargin
Type:
DisputedCollateral, complex content
variation margin details
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="variationMargin" type="DisputedCollateral"/>
