group "CommodityCalculationPeriodsPointer.model"

Namespace:	http://www.fpml.org/FpML-5/reporting
Content:	3 elements
Defined:	globally in fpml-com-5-3.xsd; see XML source
Includes:	definitions of 3 elements
Used:	at 9 locations

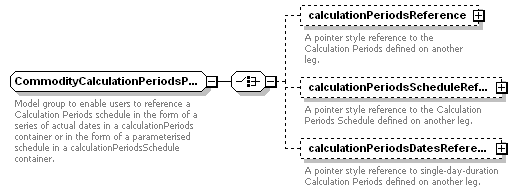

Content Model Diagram

Complex Content Model

calculationPeriodsReference? | calculationPeriodsScheduleReference? | calculationPeriodsDatesReference?

Content Model Elements (3):

calculationPeriodsDatesReference, calculationPeriodsReference, calculationPeriodsScheduleReference

Known Usage Locations

In definitions of other model groups (1):
CommodityCalculationPeriods.model
In definitions of global complexTypes (8):
CommodityDeliveryPeriods, CommodityFixedPriceSchedule, CommodityFx, CommodityNotionalQuantitySchedule, CommodityPricingDates, CommodityRelativePaymentDates, CommoditySpreadSchedule, CommodityStrikeSchedule

Annotation

Model group to enable users to reference a Calculation Periods schedule in the form of a series of actual dates in a calculationPeriods container or in the form of a parameterised schedule in a calculationPeriodsSchedule container.

XML Source (w/o annotations (4); see within schema source)

<xsd:group name="CommodityCalculationPeriodsPointer.model">

<xsd:choice>

<xsd:element minOccurs="0" name="calculationPeriodsReference" type="CalculationPeriodsReference"/>

<xsd:element minOccurs="0" name="calculationPeriodsScheduleReference" type="CalculationPeriodsScheduleReference"/>

<xsd:element minOccurs="0" name="calculationPeriodsDatesReference" type="CalculationPeriodsDatesReference"/>

</xsd:choice>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 3/3)

calculationPeriodsDatesReference

Type:

CalculationPeriodsDatesReference, empty content

A pointer style reference to single-day-duration Calculation Periods defined on another leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="calculationPeriodsDatesReference" type="CalculationPeriodsDatesReference"/>

calculationPeriodsReference

Type:

CalculationPeriodsReference, empty content

A pointer style reference to the Calculation Periods defined on another leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="calculationPeriodsReference" type="CalculationPeriodsReference"/>

calculationPeriodsScheduleReference

Type:

CalculationPeriodsScheduleReference, empty content

A pointer style reference to the Calculation Periods Schedule defined on another leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="calculationPeriodsScheduleReference" type="CalculationPeriodsScheduleReference"/>
