element <marketDisruption> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
CommodityMarketDisruption
Content:
complex, 9 elements
Defined:
locally witnin CommodityContent.model group in fpml-com-5-3.xsd; see XML source

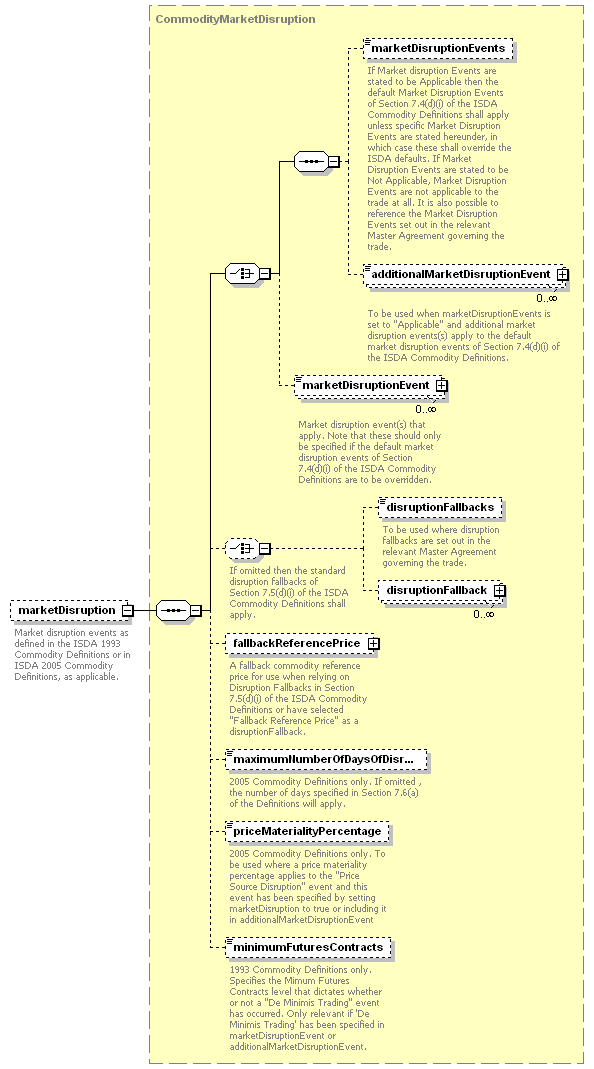

Content Model Diagram
XML Representation Summary
<marketDisruption>

Content:
 ((marketDisruptionEvents?, additionalMarketDisruptionEvent*) | marketDisruptionEvent*), (disruptionFallbacks? | disruptionFallback*)?, fallbackReferencePrice?, maximumNumberOfDaysOfDisruption?, priceMaterialityPercentage?, minimumFuturesContracts?
</marketDisruption>
Content model elements (9):
additionalMarketDisruptionEvent,
disruptionFallback,
disruptionFallbacks,
fallbackReferencePrice (in marketDisruption defined in CommodityContent.model group),
marketDisruptionEvent,
marketDisruptionEvents,
maximumNumberOfDaysOfDisruption,
minimumFuturesContracts,
priceMaterialityPercentage
Included in content model of elements (3):
commodityForward, commodityOption, commoditySwap
Annotation
Market disruption events as defined in the ISDA 1993 Commodity Definitions or in ISDA 2005 Commodity Definitions, as applicable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="marketDisruption" type="CommodityMarketDisruption"/>
