group "CommodityPaymentDates.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
3 elements
Defined:
globally in fpml-com-5-3.xsd; see XML source
Includes:
definition of 1 element
Used:
at 4 locations

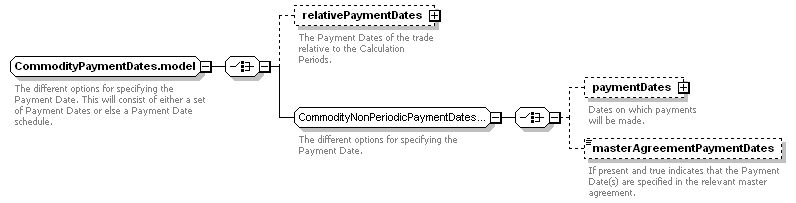

Content Model Diagram
Complex Content Model
relativePaymentDates? | paymentDates? | masterAgreementPaymentDates?
Content Model Elements (3):
masterAgreementPaymentDates,
paymentDates (defined in CommodityNonPeriodicPaymentDates.model group),
relativePaymentDates
Known Usage Locations
Annotation
The different options for specifying the Payment Date. This will consist of either a set of Payment Dates or else a Payment Date schedule.
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="CommodityPaymentDates.model">
<xsd:choice>
<xsd:element minOccurs="0" name="relativePaymentDates" type="CommodityRelativePaymentDates"/>
<xsd:group ref="CommodityNonPeriodicPaymentDates.model"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/3)
relativePaymentDates
Type:
CommodityRelativePaymentDates, complex content
The Payment Dates of the trade relative to the Calculation Periods.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="relativePaymentDates" type="CommodityRelativePaymentDates"/>
