complexType "OptionBase"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 1 attribute, 8 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-option-shared-5-3.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

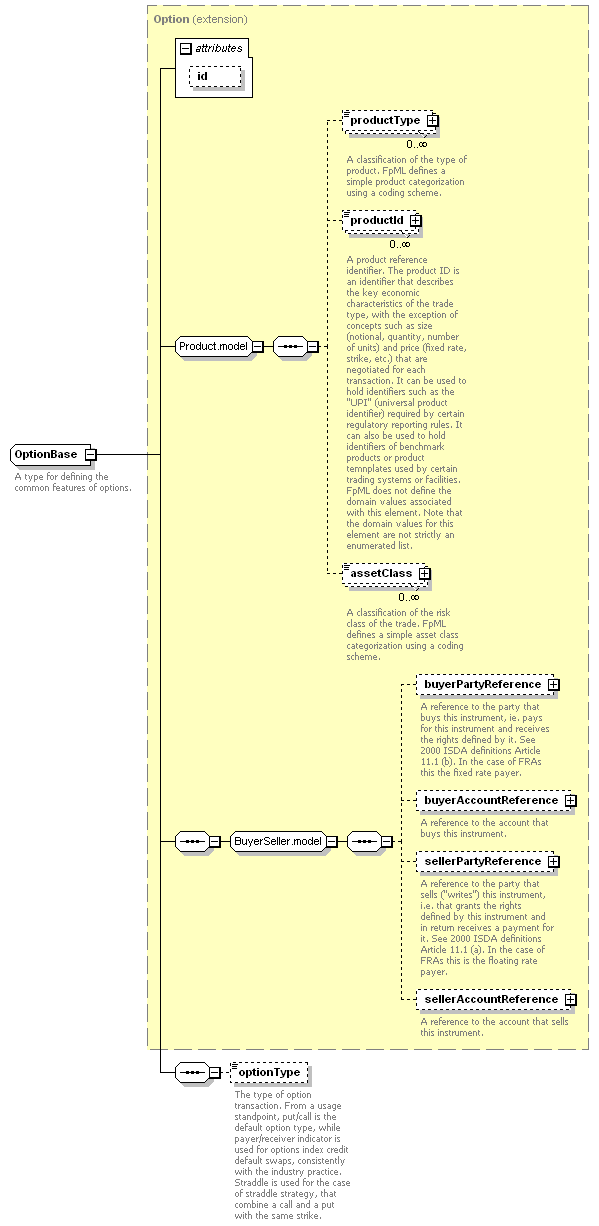

Content Model Diagram
XML Representation Summary
<...

id
 =
 xsd:ID
    >

Content:
 productType*, productId*, assetClass*, buyerPartyReference?, buyerAccountReference?, sellerPartyReference?, sellerAccountReference?, optionType?
</...>
Content Model Elements (8):
assetClass (defined in Product.model group),
optionType (defined in OptionBase complexType),
 productId (defined in Product.model group),
productType (defined in Product.model group),
Known Direct Subtypes (2):
OptionBaseExtended, VarianceOptionTransactionSupplement
Known Indirect Subtypes (2):
BondOption, CreditDefaultSwapOption
All Direct / Indirect Based Elements (3):
bondOption, creditDefaultSwapOption, varianceOptionTransactionSupplement
Known Usage Locations
Annotation
A type for defining the common features of options.
Type Definition Detail
Type Derivation Tree
Product (extension)
  Option (extension)
      OptionBase
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="OptionBase">
<xsd:complexContent>
<!--5-1 FX Refactoring: Replaced the Product with Option base class. Removed BuyerSeller.model as it exists inside the option base class-->
<xsd:extension base="Option">
<xsd:sequence>
<xsd:element minOccurs="0" name="optionType" type="OptionTypeEnum"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/8)
optionType
Type:
OptionTypeEnum, simple content
The type of option transaction. From a usage standpoint, put/call is the default option type, while payer/receiver indicator is used for options index credit default swaps, consistently with the industry practice. Straddle is used for the case of straddle strategy, that combine a call and a put with the same strike.
Simple Content
("Put" | "Call") | ("Payer" | "Receiver" | "Straddle")
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="optionType" type="OptionTypeEnum"/>
