element <market> (global)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
Market
Content:
complex, 1 attribute, 5 elements
Defined:
globally in fpml-riskdef-5-3.xsd; see XML source
Used:
at 3 locations

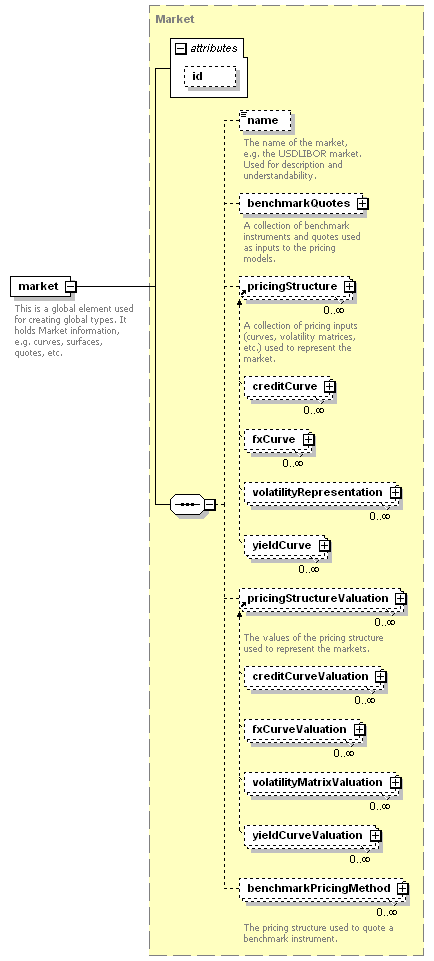

Content Model Diagram
XML Representation Summary
<market

id
 =
 xsd:ID
    >

Content:
 name?, benchmarkQuotes?, pricingStructure*, pricingStructureValuation*, benchmarkPricingMethod*
</market>
Content model elements (5):
benchmarkPricingMethod,
name (in market),
 pricingStructure,
Included in content model of elements (3):
requestValuationReport, valuationDocument, valuationReport
May contain elements by substitutions (8):
creditCurve, creditCurveValuation, fxCurve, fxCurveValuation, volatilityMatrixValuation, volatilityRepresentation, yieldCurve, yieldCurveValuation
Known Usage Locations
Annotation
This is a global element used for creating global types. It holds Market information, e.g. curves, surfaces, quotes, etc.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="market" type="Market"/>
