element <partialDerivative> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
PricingParameterDerivative
Content:
complex, 1 attribute, 4 elements
Defined:
locally witnin ComputedDerivative.model group in fpml-riskdef-5-3.xsd; see XML source

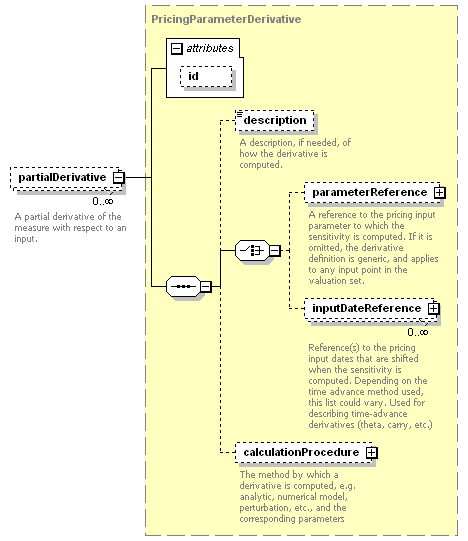

Content Model Diagram
XML Representation Summary
<partialDerivative

id
 =
 xsd:ID
    >

Content:
 description?, (parameterReference? | inputDateReference*), calculationProcedure?
</partialDerivative>
Content model elements (4):
calculationProcedure (in partialDerivative), inputDateReference,
Included in content model of elements (1):
sensitivityDefinition
Annotation
A partial derivative of the measure with respect to an input.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partialDerivative" type="PricingParameterDerivative"/>
