complexType "TradeNovationContent"

Namespace:	http://www.fpml.org/FpML-5/reporting
Content:	complex, 34 elements
Defined:	globally in fpml-business-events-5-5.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

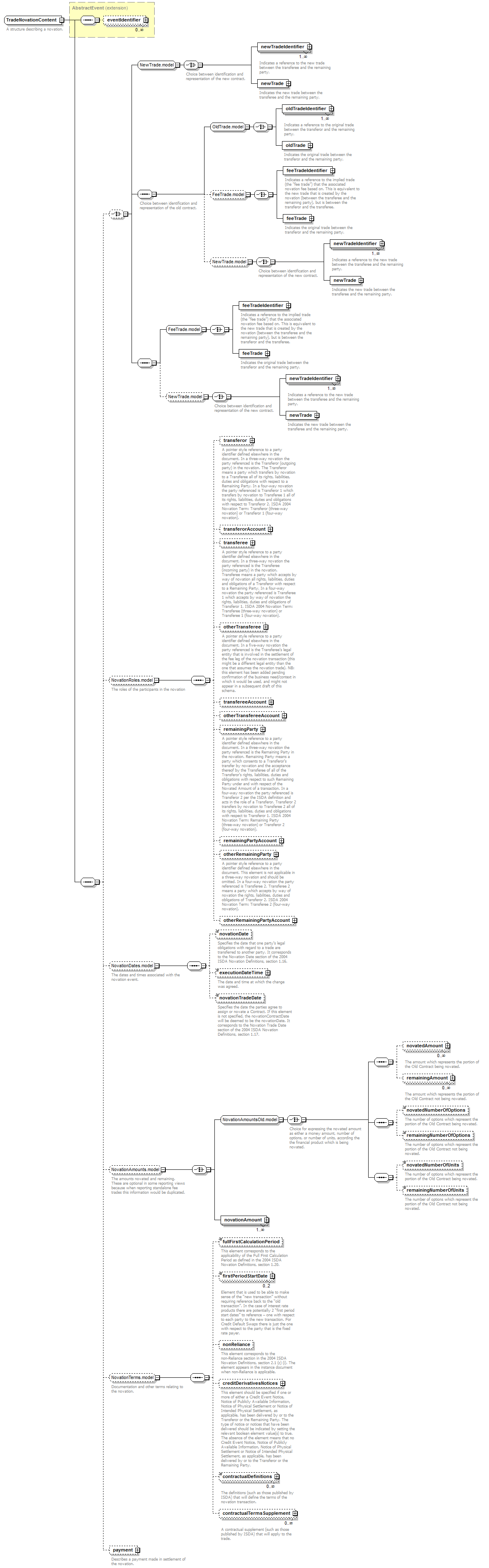

Content Model Diagram

XML Representation Summary

<...>

Content:

eventIdentifier*, (newTradeIdentifier+ | newTrade | ((oldTradeIdentifier+ | oldTrade), (feeTradeIdentifier | feeTrade)?, (newTradeIdentifier+ | newTrade)?) | ((feeTradeIdentifier | feeTrade), (newTradeIdentifier+ | newTrade)?))?, (transferor?, transferorAccount?, transferee?, otherTransferee?, transfereeAccount?, otherTransfereeAccount?, remainingParty?, remainingPartyAccount?, otherRemainingParty?, otherRemainingPartyAccount?)?, (novationDate?, executionDateTime?, novationTradeDate?)?, ((novatedAmount*, remainingAmount*) | (novatedNumberOfOptions?, remainingNumberOfOptions?) | (novatedNumberOfUnits?, remainingNumberOfUnits?) | novationAmount+)?, (fullFirstCalculationPeriod?, firstPeriodStartDate[0..2], nonReliance?, creditDerivativesNotices?, contractualDefinitions*, contractualTermsSupplement*)?, payment?

</...>

Content Model Elements (34):

All Direct / Indirect Based Elements (1):

novation

Known Usage Locations

As direct type of elements (1):
novation

Annotation

A structure describing a novation.

Type Definition Detail

Type Derivation Tree

AbstractEvent (extension)

TradeNovationContent

XML Source (w/o annotations (7); see within schema source)

<xsd:complexType name="TradeNovationContent">

<xsd:complexContent>

<xsd:extension base="AbstractEvent">

<xsd:sequence>

<xsd:choice minOccurs="0">

<xsd:group ref="NewTrade.model"/>

<xsd:sequence>

<xsd:group ref="OldTrade.model"/>

<xsd:group minOccurs="0" ref="FeeTrade.model"/>

<xsd:group minOccurs="0" ref="NewTrade.model"/>

</xsd:sequence>

<xsd:sequence>

<xsd:group ref="FeeTrade.model"/>

<xsd:group minOccurs="0" ref="NewTrade.model"/>

</xsd:sequence>

</xsd:choice>

<xsd:group minOccurs="0" ref="NovationRoles.model"/>

<xsd:group minOccurs="0" ref="NovationDates.model"/>

<xsd:group minOccurs="0" ref="NovationAmounts.model"/>

<xsd:group minOccurs="0" ref="NovationTerms.model"/>

<xsd:element minOccurs="0" name="payment" type="Payment"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/34)

payment

Type:

Payment, complex content

Describes a payment made in settlement of the novation.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="payment" type="Payment"/>
