complexType "ReportingRegime"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 7 elements
Defined:
globally in fpml-doc-5-5.xsd; see XML source
Includes:
definitions of 7 elements
Used:
at 1 location

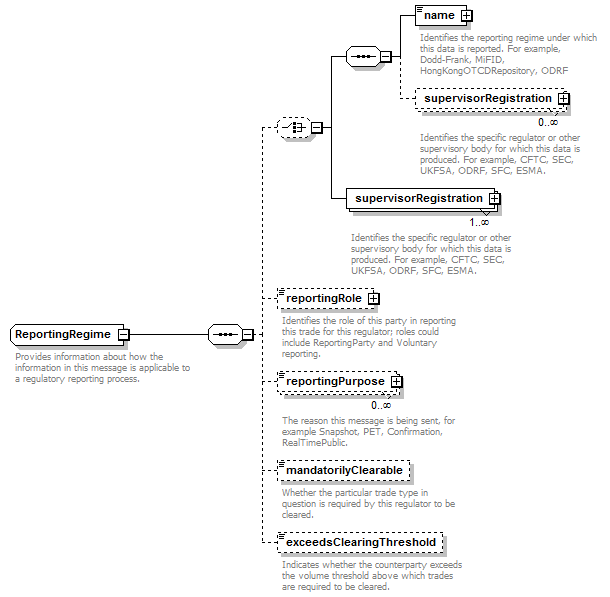

Content Model Diagram
XML Representation Summary
<...>

Content:
 ((name, supervisorRegistration*) | supervisorRegistration+)?, reportingRole?, reportingPurpose*, mandatorilyClearable?, exceedsClearingThreshold?
</...>
Content Model Elements (7):
exceedsClearingThreshold, reportingRole (in reportingRegime),
All Direct / Indirect Based Elements (1):
reportingRegime
Known Usage Locations
Annotation
Provides information about how the information in this message is applicable to a regulatory reporting process.
XML Source (w/o annotations (8); see within schema source)
<xsd:complexType name="ReportingRegime">
<xsd:sequence>
<xsd:choice minOccurs="0">
<xsd:sequence>
<xsd:element name="name" type="ReportingRegimeName"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="supervisorRegistration" type="SupervisorRegistration"/>
</xsd:sequence>
<xsd:element maxOccurs="unbounded" name="supervisorRegistration" type="SupervisorRegistration"/>
</xsd:choice>
<xsd:element minOccurs="0" name="reportingRole" type="ReportingRole"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reportingPurpose" type="ReportingPurpose"/>
<!-- NB: the following field is still under discussion in the FpML Reporting Working Group and may be changed in subsquent drafts of the standard -->
<!--
<xsd:element name="publiclyReportable" type="xsd:boolean" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">Whether the particular trade type in question is required to be publicly by this regulator. Note that this just says whether the regulator requires public reporting; use reportingPurpose to indicate whether the message is intended to provide public reporting.</xsd:documentation>

</xsd:annotation>
</xsd:element>
-->
<xsd:element minOccurs="0" name="mandatorilyClearable" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="exceedsClearingThreshold" type="xsd:boolean"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 7/7)
exceedsClearingThreshold
Type:
xsd:boolean, predefined, simple content
Indicates whether the counterparty exceeds the volume threshold above which trades are required to be cleared.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="exceedsClearingThreshold" type="xsd:boolean"/>
mandatorilyClearable
Type:
xsd:boolean, predefined, simple content
Whether the particular trade type in question is required by this regulator to be cleared.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="mandatorilyClearable" type="xsd:boolean"/>
name
Type:
ReportingRegimeName, simple content
Identifies the reporting regime under which this data is reported. For example, Dodd-Frank, MiFID, HongKongOTCDRepository, ODRF
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="name" type="ReportingRegimeName"/>
reportingPurpose
Type:
ReportingPurpose, simple content
The reason this message is being sent, for example Snapshot, PET, Confirmation, RealTimePublic.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reportingPurpose" type="ReportingPurpose"/>
reportingRole
Type:
ReportingRole, simple content
Identifies the role of this party in reporting this trade for this regulator; roles could include ReportingParty and Voluntary reporting.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="reportingRole" type="ReportingRole"/>
supervisorRegistration
Type:
SupervisorRegistration, complex content
Identifies the specific regulator or other supervisory body for which this data is produced. For example, CFTC, SEC, UKFSA, ODRF, SFC, ESMA.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="supervisorRegistration" type="SupervisorRegistration"/>
supervisorRegistration
Type:
SupervisorRegistration, complex content
Identifies the specific regulator or other supervisory body for which this data is produced. For example, CFTC, SEC, UKFSA, ODRF, SFC, ESMA.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="supervisorRegistration" type="SupervisorRegistration"/>
