group "CommodityFloatingStrikePrice.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
2 elements
Defined:
globally in fpml-com-5-5.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

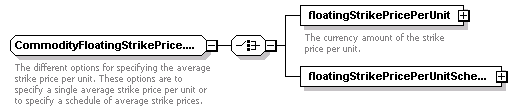

Content Model Diagram
Complex Content Model
floatingStrikePricePerUnit | floatingStrikePricePerUnitSchedule
Content Model Elements (2):
floatingStrikePricePerUnit, floatingStrikePricePerUnitSchedule
Known Usage Locations
Annotation
The different options for specifying the average strike price per unit. These options are to specify a single average strike price per unit or to specify a schedule of average strike prices.
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="CommodityFloatingStrikePrice.model">
<xsd:choice>
<xsd:element name="floatingStrikePricePerUnit" type="FloatingStrikePrice"/>
<xsd:element name="floatingStrikePricePerUnitSchedule" type="CommodityCalculationPeriodsSchedule"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/2)
floatingStrikePricePerUnit
Type:
FloatingStrikePrice, complex content
The currency amount of the strike price per unit.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="floatingStrikePricePerUnit" type="FloatingStrikePrice"/>
floatingStrikePricePerUnitSchedule
Type:
CommodityCalculationPeriodsSchedule, complex content
XML Source (see within schema source)
<xsd:element name="floatingStrikePricePerUnitSchedule" type="CommodityCalculationPeriodsSchedule"/>
