group "LagOrReference.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
2 elements
Defined:
globally in fpml-com-5-5.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

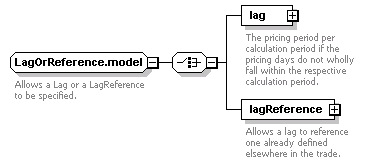

Content Model Diagram
Complex Content Model
lag | lagReference
Content Model Elements (2):
lag (defined in LagOrReference.model group), lagReference
Known Usage Locations
Annotation
Allows a Lag or a LagReference to be specified.
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="LagOrReference.model">
<xsd:choice>
<xsd:element name="lag" type="Lag"/>
<xsd:element name="lagReference" type="LagReference"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/2)
lag
Type:
Lag, complex content
The pricing period per calculation period if the pricing days do not wholly fall within the respective calculation period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="lag" type="Lag"/>
lagReference
Type:
LagReference, empty content
Allows a lag to reference one already defined elsewhere in the trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="lagReference" type="LagReference"/>
