group "PricingDays.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
5 elements
Defined:
globally in fpml-com-5-5.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 2 locations

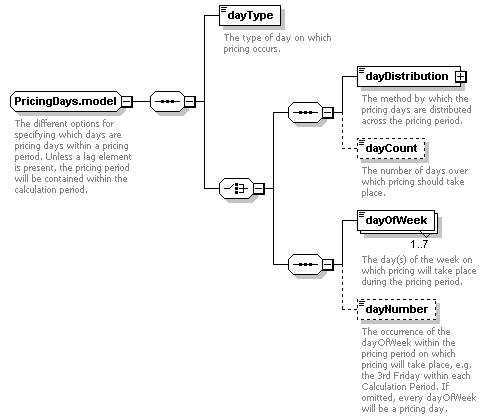

Content Model Diagram
Complex Content Model
dayType, ((dayDistribution, dayCount?) | (dayOfWeek[1..7], dayNumber?))
Content Model Elements (5):
dayCount, dayOfWeek,
dayType (defined in PricingDays.model group)
Known Usage Locations
Annotation
The different options for specifying which days are pricing days within a pricing period. Unless a lag element is present, the pricing period will be contained within the calculation period.
XML Source (w/o annotations (6); see within schema source)
<xsd:group name="PricingDays.model">
<xsd:sequence>
<xsd:element name="dayType" type="CommodityDayTypeEnum"/>
<xsd:choice>
<xsd:sequence>
<xsd:element name="dayDistribution" type="CommodityFrequencyType"/>
<xsd:element minOccurs="0" name="dayCount" type="xsd:positiveInteger"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element maxOccurs="7" name="dayOfWeek" type="DayOfWeekEnum"/>
<xsd:element minOccurs="0" name="dayNumber" type="xsd:integer"/>
</xsd:sequence>
</xsd:choice>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 5/5)
dayCount
Type:
xsd:positiveInteger, predefined, simple content
The number of days over which pricing should take place.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="dayCount" type="xsd:positiveInteger"/>
dayDistribution
Type:
CommodityFrequencyType, simple content
The method by which the pricing days are distributed across the pricing period.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="dayDistribution" type="CommodityFrequencyType"/>
dayNumber
Type:
xsd:integer, predefined, simple content
The occurrence of the dayOfWeek within the pricing period on which pricing will take place, e.g. the 3rd Friday within each Calculation Period. If omitted, every dayOfWeek will be a pricing day.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="dayNumber" type="xsd:integer"/>
dayOfWeek
Type:
DayOfWeekEnum, simple content
The day(s) of the week on which pricing will take place during the pricing period.
Simple Content
enumeration of xsd:token
Enumeration:
"MON"
 -
 Monday
See:  http://www.FpML.org
"TUE"
 -
 Tuesday
See:  http://www.FpML.org
"WED"
 -
 Wednesday
See:  http://www.FpML.org
"THU"
 -
 Thursday
See:  http://www.FpML.org
"FRI"
 -
 Friday
See:  http://www.FpML.org
"SAT"
 -
 Saturday
See:  http://www.FpML.org
"SUN"
 -
 Sunday
See:  http://www.FpML.org
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="7" name="dayOfWeek" type="DayOfWeekEnum"/>
dayType
Type:
CommodityDayTypeEnum, simple content
The type of day on which pricing occurs.
Simple Content
("Business" | "Calendar" | "CommodityBusiness" | "CurrencyBusiness" | "ExchangeBusiness" | "ScheduledTradingDay") | "GasFlow"
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="dayType" type="CommodityDayTypeEnum"/>
