element <trade> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Trade
Content:
complex, 1 attribute, 13 elements
Defined:
locally witnin TradeOrTradeReference.model group in fpml-doc-5-5.xsd; see XML source

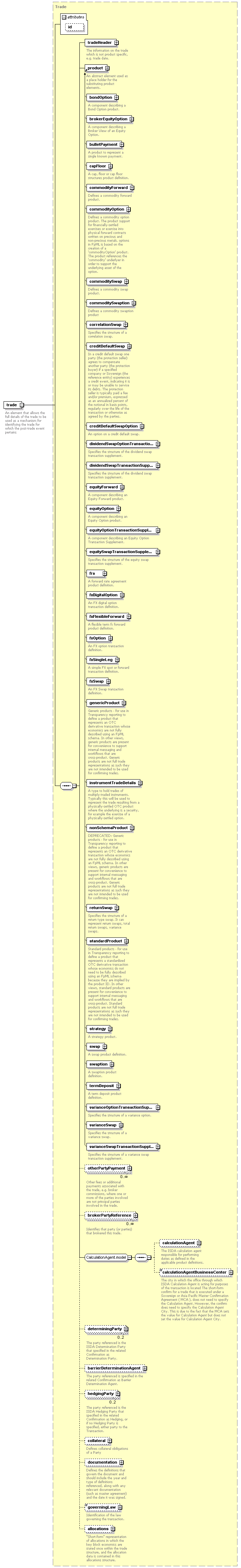

Content Model Diagram
XML Representation Summary
<trade

id
 =
 xsd:ID
    >

Content:
 tradeHeader, product, otherPartyPayment*, brokerPartyReference*, calculationAgent?, calculationAgentBusinessCenter?, determiningParty[0..2], barrierDeterminationAgent?, hedgingParty[0..2], collateral?, documentation?, governingLaw?, allocations?
</trade>
Content model elements (13):
allocations (defined in Trade complexType),
collateral (defined in Trade complexType),
 documentation (defined in Trade complexType),
governingLaw (defined in Trade complexType),
Included in content model of elements (1):
affectedTransactions
May contain elements by substitutions (35):
bondOption, brokerEquityOption, bulletPayment, capFloor, commodityForward, commodityOption, commoditySwap, commoditySwaption, correlationSwap, creditDefaultSwap, creditDefaultSwapOption, dividendSwapOptionTransactionSupplement, dividendSwapTransactionSupplement, equityForward, equityOption, equityOptionTransactionSupplement, equitySwapTransactionSupplement, fra, fxDigitalOption, fxFlexibleForward, fxOption, fxSingleLeg, fxSwap, genericProduct, instrumentTradeDetails, nonSchemaProduct, returnSwap, standardProduct, strategy, swap, swaption, termDeposit, varianceOptionTransactionSupplement, varianceSwap, varianceSwapTransactionSupplement
Annotation
An element that allows the full details of the trade to be used as a mechanism for identifying the trade for which the post-trade event pertains
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="trade" type="Trade"/>
