element <instrumentTradeDetails> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
InstrumentTradeDetails
Content:
complex, 1 attribute, 13 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-doc-5-5.xsd; see XML source
Used:
never

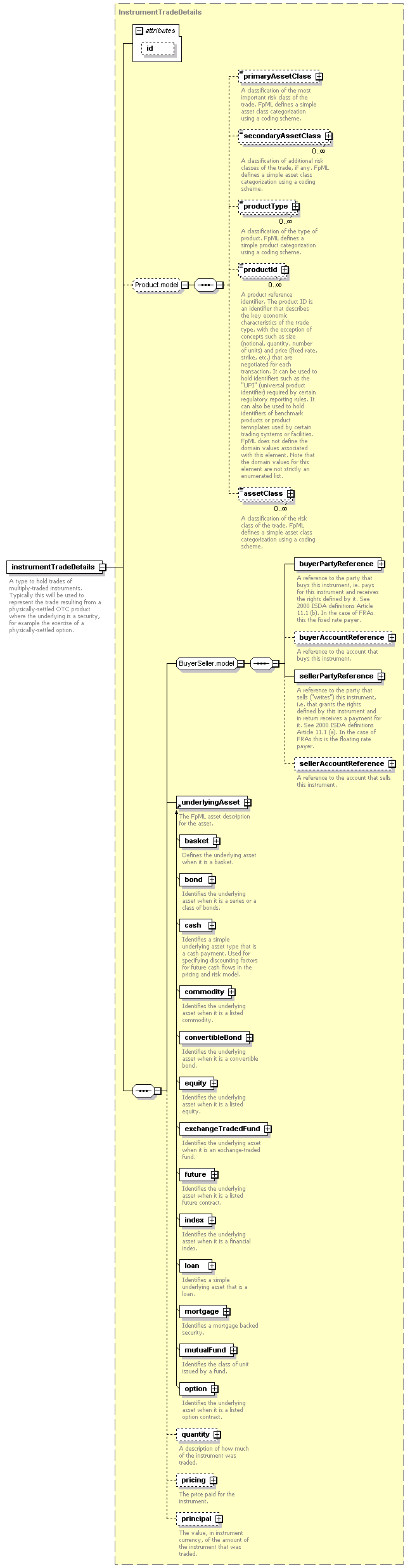

Content Model Diagram
XML Representation Summary
<instrumentTradeDetails

id
 =
 xsd:ID
    >

Content:
 (primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?, underlyingAsset, quantity?, pricing?, principal?
</instrumentTradeDetails>
Content model elements (13):
assetClass,
productId (defined in Product.model group),
 productType (defined in Product.model group),
May contain elements by substitutions (13):
basket, bond, cash, commodity, convertibleBond, equity, exchangeTradedFund, future, index, loan, mortgage, mutualFund, option
May be included in elements by substitutions (18):
feeTrade,
oldTrade (defined in TradeChangeContent complexType),
originalTrade (defined in TradeChangeBase complexType),
 trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in ImpliedTrade complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
Annotation
A type to hold trades of multiply-traded instruments. Typically this will be used to represent the trade resulting from a physically-settled OTC product where the underlying is a security, for example the exercise of a physically-settled option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="instrumentTradeDetails" substitutionGroup="product" type="InstrumentTradeDetails"/>
