element <strike> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
GenericOptionStrike
Content:
complex, 5 elements
Defined:
locally witnin GenericOptionAttributes.model group in fpml-generic-5-5.xsd; see XML source

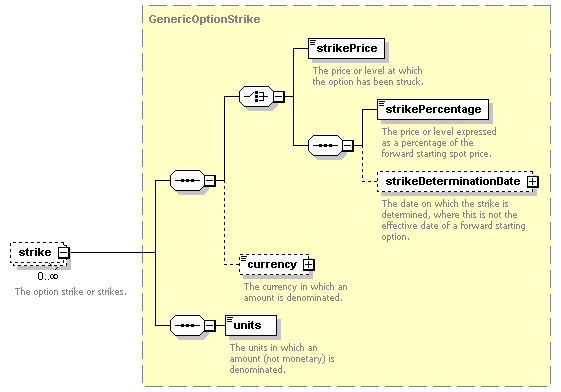

Content Model Diagram
XML Representation Summary
<strike>

Content:
 (strikePrice | (strikePercentage, strikeDeterminationDate?)), currency?, units
</strike>
Content model elements (5):
currency (defined in EquityStrike complexType),
strikeDeterminationDate,
strikePercentage (defined in EquityStrike complexType),
strikePrice (defined in EquityStrike complexType),
units (in strike defined in GenericOptionAttributes.model group)
Included in content model of elements (2):
genericProduct, nonSchemaProduct
Annotation
The option strike or strikes.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="strike" type="GenericOptionStrike"/>
