element <creditCurve> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CreditCurve
Content:
complex, 1 attribute, 10 elements
Subst.Gr:
may substitute for element pricingStructure
Defined:
globally in fpml-mktenv-5-5.xsd; see XML source
Used:
never

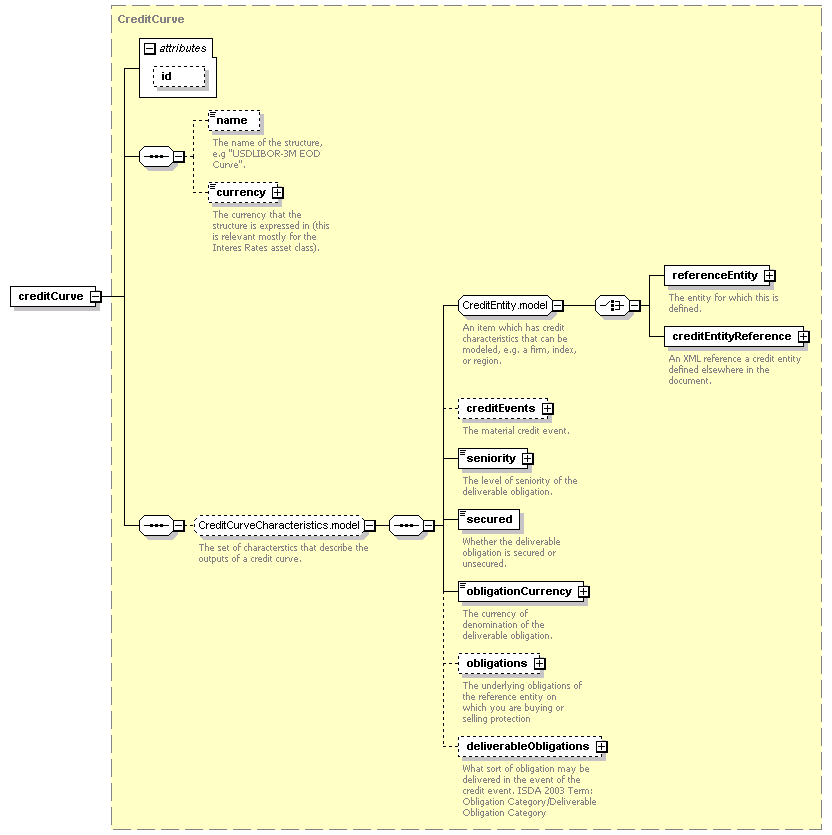

Content Model Diagram
XML Representation Summary
<creditCurve

id
 =
 xsd:ID
    >

Content:
 name?, currency?, ((referenceEntity | creditEntityReference), creditEvents?, seniority, secured, obligationCurrency, obligations?, deliverableObligations?)?
</creditCurve>
Content model elements (10):
creditEntityReference,
currency (defined in PricingStructure complexType),
name (defined in PricingStructure complexType),
 obligationCurrency,
May be included in elements by substitutions (1):
market
XML Source (see within schema source)
<xsd:element name="creditCurve" substitutionGroup="pricingStructure" type="CreditCurve"/>
