element <volatilityMatrixValuation> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
VolatilityMatrix
Content:
complex, 2 attributes, 9 elements
Subst.Gr:
may substitute for element pricingStructureValuation
Defined:
globally in fpml-mktenv-5-5.xsd; see XML source
Used:
never

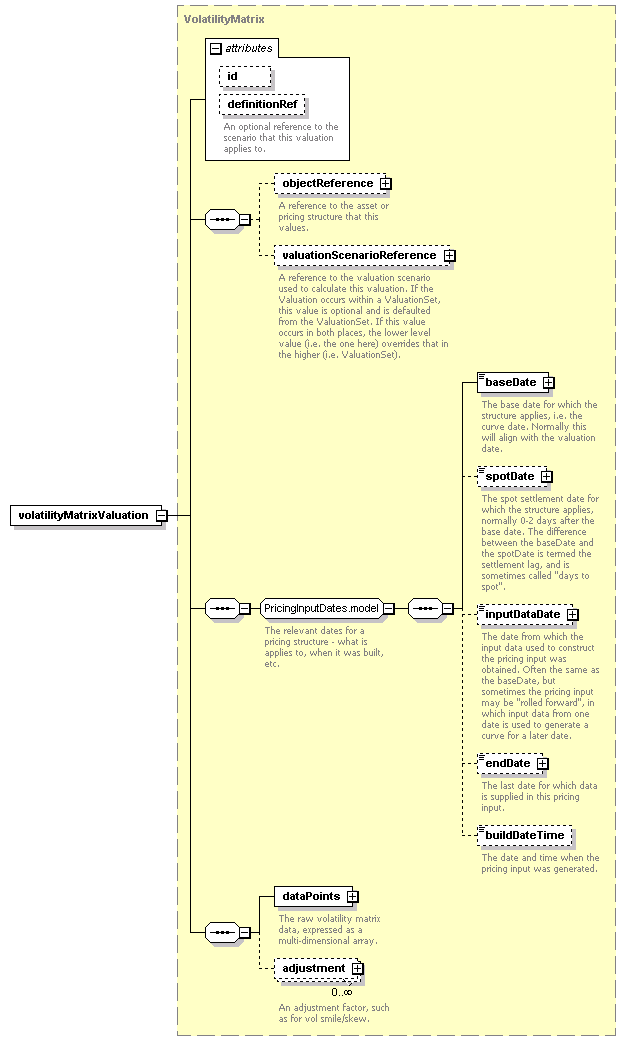

Content Model Diagram
XML Representation Summary
<volatilityMatrixValuation

id
 =
 xsd:ID
definitionRef
 =
 xsd:IDREF
    >

Content:
 objectReference?, valuationScenarioReference?, baseDate, spotDate?, inputDataDate?, endDate?, buildDateTime?, dataPoints, adjustment*
</volatilityMatrixValuation>
Content model elements (9):
adjustment,
baseDate,
buildDateTime,
dataPoints,
endDate (defined in PricingInputDates.model group),
inputDataDate,
objectReference,
spotDate,
valuationScenarioReference (defined in Valuation complexType)
May be included in elements by substitutions (1):
market
XML Source (see within schema source)
<xsd:element name="volatilityMatrixValuation" substitutionGroup="pricingStructureValuation" type="VolatilityMatrix"/>
