element <equity> (global)
Namespace:
http://www.fpml.org/FpML-5/pretrade
Type:
EquityAsset
Content:
complex, 1 attribute, 9 elements
Subst.Gr:
may substitute for element underlyingAsset
Defined:
globally in fpml-asset-5-7.xsd; see XML source
Used:
never

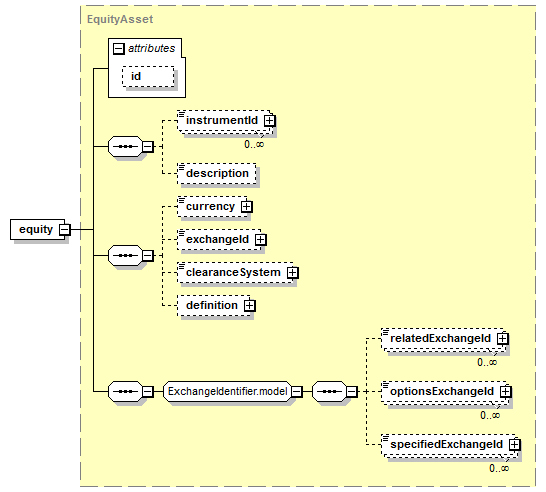

Content Model Diagram
XML Representation Summary
<equity

 =
xsd:ID

>

Content:
</equity>
Content model elements (9):
currency (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
Annotation
Identifies the underlying asset when it is a listed equity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="equity" substitutionGroup="underlyingAsset" type="EquityAsset"/>
