element <creditRiskLimit> (local)
Namespace:
http://www.fpml.org/FpML-5/pretrade
Type:
CreditRiskLimit
Content:
complex, 11 elements
Defined:
locally within LimitCheckApproved complexType in fpml-pretrade-processes-5-7.xsd; see XML source

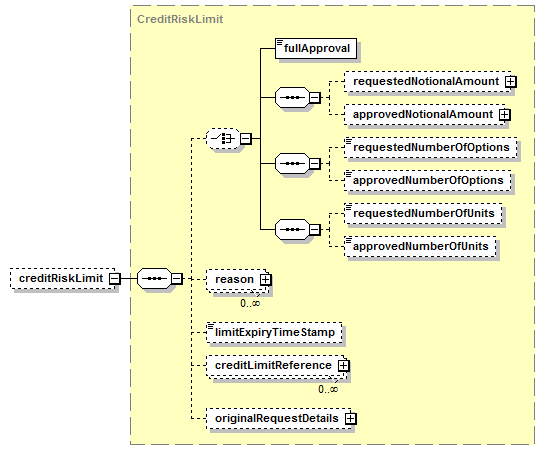

Content Model Diagram
XML Representation Summary
<creditRiskLimit>

Content:
</creditRiskLimit>
Content model elements (11):
approvedNotionalAmount,
approvedNumberOfOptions,
approvedNumberOfUnits,
creditLimitReference (in creditRiskLimit in limitCheckApproved),
fullApproval,
limitExpiryTimeStamp (in creditRiskLimit in limitCheckApproved),
originalRequestDetails (in creditRiskLimit in limitCheckApproved),
reason (in creditRiskLimit in limitCheckApproved),
requestedNotionalAmount,
requestedNumberOfOptions,
requestedNumberOfUnits
Included in content model of elements (1):
limitCheckApproved
XML Source (see within schema source)
<xsd:element minOccurs="0" name="creditRiskLimit" type="CreditRiskLimit"/>
