complexType "RequestClearingEligibility"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 24 elements
Defined:	globally in fpml-clearing-processes-5-7.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

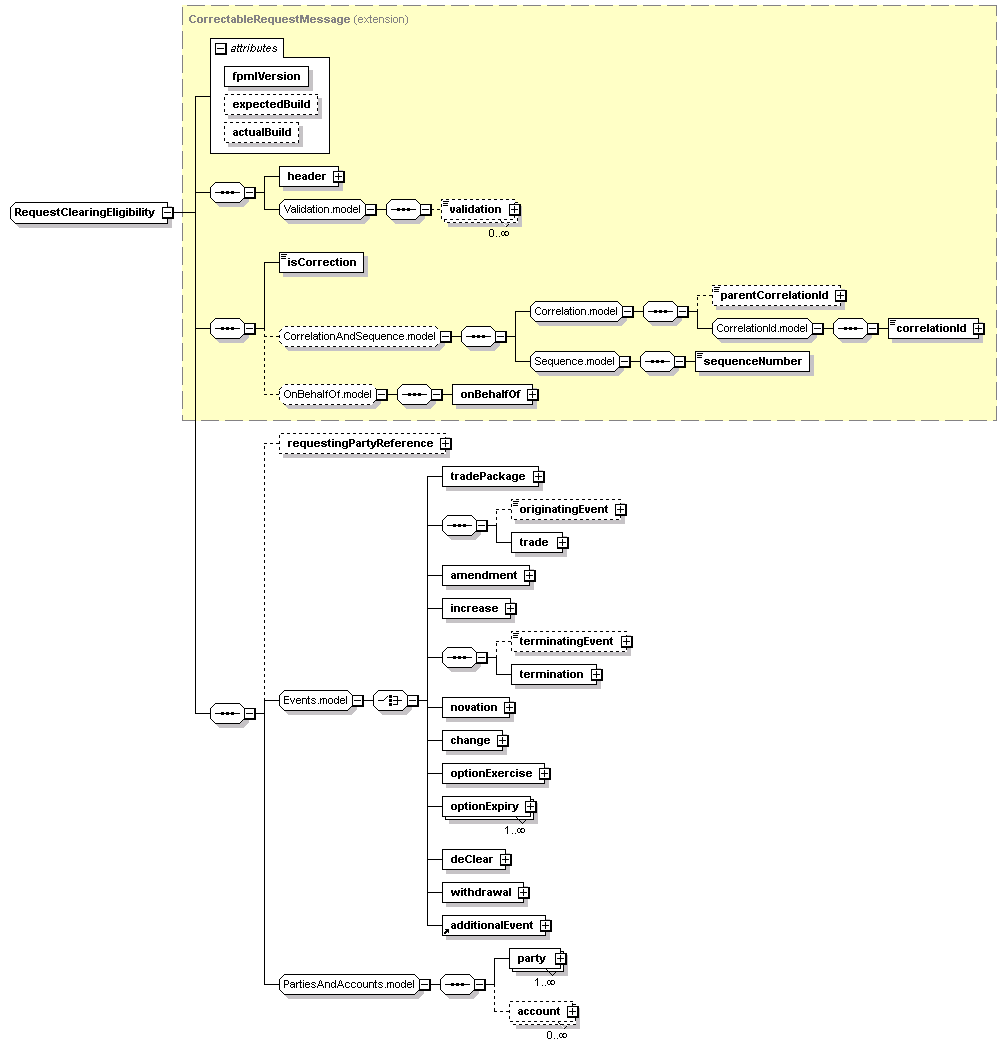

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

</...>

Content Model Elements (24):

account,

additionalEvent,

amendment,

change (defined in Events.model group),

correlationId,

deClear,

header (defined in RequestMessage complexType),

increase,

isCorrection,

novation,

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise,

optionExpiry (defined in Events.model group),

originatingEvent (defined in Events.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

requestingPartyReference,

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in Events.model group),

termination,

trade (defined in Events.model group),

tradePackage (defined in Events.model group),

validation,

withdrawal

All Direct / Indirect Based Elements (1):

requestClearingEligibility

Known Usage Locations

As direct type of elements (1):

requestClearingEligibility

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

RequestClearingEligibility

XML Source (see within schema source)

<xsd:complexType name="RequestClearingEligibility">

<xsd:complexContent>

<xsd:extension base="CorrectableRequestMessage">

<xsd:sequence>

<xsd:element fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="Deprecated in favor of existing onBehalfOf element." minOccurs="0" name="requestingPartyReference" type="PartyReference"/>

<xsd:group ref="Events.model"/>

<xsd:group ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/24)

requestingPartyReference

Type:

PartyReference, empty content

XML Source (see within schema source)
