group "CommodityNotionalQuantity.model"
Namespace:
Content:
Defined:
globally in fpml-com-5-7.xsd; see XML source
Includes:
definitions of 5 elements
Used:

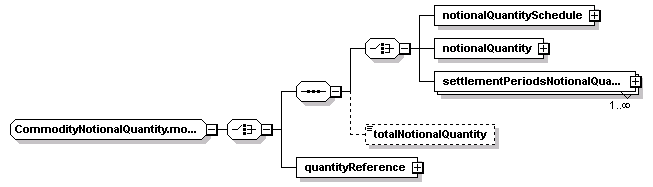

Content Model Diagram
Complex Content Model
((notionalQuantitySchedule | notionalQuantity | settlementPeriodsNotionalQuantity+), totalNotionalQuantity?) | quantityReference
Content Model Elements (5):
notionalQuantity (defined in CommodityNotionalQuantity.model group),
notionalQuantitySchedule,
quantityReference (defined in CommodityNotionalQuantity.model group),
settlementPeriodsNotionalQuantity,
totalNotionalQuantity (defined in CommodityNotionalQuantity.model group)
Known Usage Locations
Annotation
The different options for specifying the Notional Quantity. A flat notional for the term of the contract may be specified, or else the Notional Quantity per Calculation Period. In the latter case, there must be a notional quantity step specified for each Calculation Period, regardless of whether the Notional Quantity changes or remains the same between periods.
XML Source (w/o annotations (6); see within schema source)
<xsd:group name="CommodityNotionalQuantity.model">
<xsd:choice>
<xsd:sequence>
<xsd:choice>
<xsd:element name="notionalQuantitySchedule" type="CommodityNotionalQuantitySchedule"/>
<xsd:element name="notionalQuantity" type="CommodityNotionalQuantity"/>
<xsd:element maxOccurs="unbounded" name="settlementPeriodsNotionalQuantity" type="CommoditySettlementPeriodsNotionalQuantity"/>
</xsd:choice>
<xsd:element minOccurs="0" name="totalNotionalQuantity" type="xsd:decimal"/>
</xsd:sequence>
<xsd:element name="quantityReference" type="QuantityReference"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 5/5)
notionalQuantity
Type:
CommodityNotionalQuantity, complex content
The Notional Quantity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="notionalQuantity" type="CommodityNotionalQuantity"/>

notionalQuantitySchedule
Type:
Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.
XML Source (w/o annotations (1); see within schema source)

quantityReference
Type:
QuantityReference, empty content
A pointer style reference to a quantity defined on another leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="quantityReference" type="QuantityReference"/>

settlementPeriodsNotionalQuantity
Type:
For an electricity transaction, the Notional Quantity for a one or more groups of Settlement Periods to which the Notional Quantity is based. If the schedule differs for different groups of Settlement Periods, this element should be repeated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="settlementPeriodsNotionalQuantity" type="CommoditySettlementPeriodsNotionalQuantity"/>

totalNotionalQuantity
Type:
xsd:decimal, predefined, simple content
The Total Notional Quantity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="totalNotionalQuantity" type="xsd:decimal"/>
