element <metalPhysicalLeg> (global)
Namespace:
Type:
Content:
complex, 1 attribute, 11 elements
Subst.Gr:
may substitute for element commodityForwardLeg
Defined:
globally in fpml-com-5-7.xsd; see XML source
Used:
never

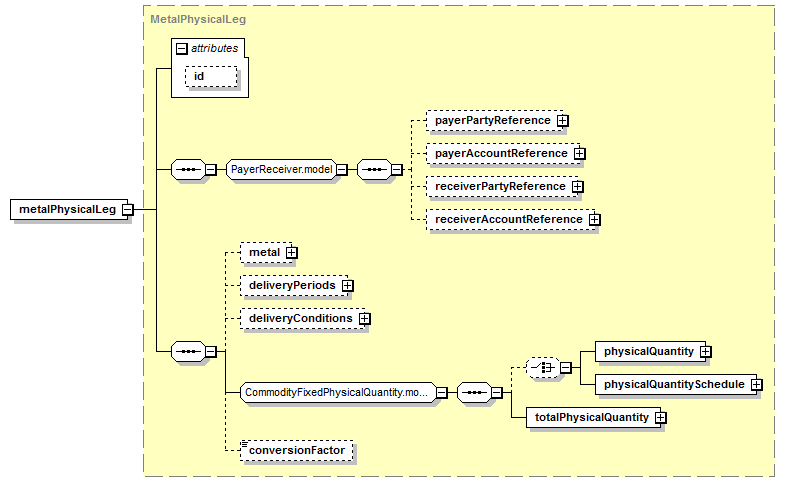

Content Model Diagram
XML Representation Summary
<metalPhysicalLeg

 =
xsd:ID

>

Content:
</metalPhysicalLeg>
Content model elements (11):
conversionFactor (in metalPhysicalLeg),
deliveryConditions (in metalPhysicalLeg),
deliveryPeriods (in metalPhysicalLeg),
metal,
payerAccountReference,
payerPartyReference (defined in PayerReceiver.model group),
physicalQuantity (defined in CommodityFixedPhysicalQuantity.model group),
physicalQuantitySchedule (defined in CommodityFixedPhysicalQuantity.model group),
receiverAccountReference,
receiverPartyReference,
totalPhysicalQuantity (defined in CommodityFixedPhysicalQuantity.model group)
May be included in elements by substitutions (1):
commodityForward
Annotation
Physically settled metal products leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="metalPhysicalLeg" substitutionGroup="commodityForwardLeg" type="MetalPhysicalLeg"/>
