group "CommodityContent.model"
Namespace:
Content:
Defined:
globally in fpml-com-5-7.xsd; see XML source
Includes:
definitions of 4 elements
Used:

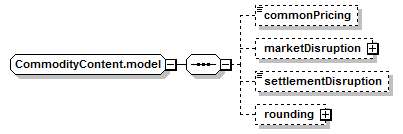

Content Model Diagram
Complex Content Model
commonPricing?, marketDisruption?, settlementDisruption?, rounding?
Content Model Elements (4):
rounding (defined in CommodityContent.model group),
Known Usage Locations
Annotation
Items common to all Commodity Transactions.
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="CommodityContent.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="commonPricing" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="marketDisruption" type="CommodityMarketDisruption"/>
<xsd:element minOccurs="0" name="settlementDisruption" type="CommodityBullionSettlementDisruptionEnum"/>
<xsd:element minOccurs="0" name="rounding" type="Rounding"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 4/4)
commonPricing
Type:
xsd:boolean, predefined, simple content
If Common Pricing is elected (“true”) for a Transaction with referencing more than one Commodity Reference Price then no date will be a Pricing Date unless such a date is a day on which all Commodity Reference Prices are scheduled to be published.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="commonPricing" type="xsd:boolean"/>

marketDisruption
Type:
CommodityMarketDisruption, complex content
Contains contract terms related to triggers and responses to market disruptions as defined in the 1993 or 2005 Commodity Definitions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="marketDisruption" type="CommodityMarketDisruption"/>

rounding
Type:
Rounding, complex content
Rounding direction and precision for amounts.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="rounding" type="Rounding"/>

settlementDisruption
Type:
Describes contract terms related to the consequences of Bullion Settlement Disruption Events.
Simple Content
enumeration of xsd:token
Enumeration:
"Negotiation"
 -
Negotiation will apply in the event of Bullion Settlement Disruption as per Section 10.5.(d) of the 2005 Commodity Definitions.
"Cancellation and Payment"
 -
Cancellation and Payment will apply in the event of Bullion Settlement Disruption as per Section 10.5.(d) of the 2005 Commodity Definitions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="settlementDisruption" type="CommodityBullionSettlementDisruptionEnum"/>
