element <instrumentTradeDetails> (global)
Namespace:
http://www.fpml.org/FpML-5/recordkeeping
Type:
InstrumentTradeDetails
Content:
complex, 1 attribute, 13 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-doc-5-7.xsd; see XML source
Used:
never

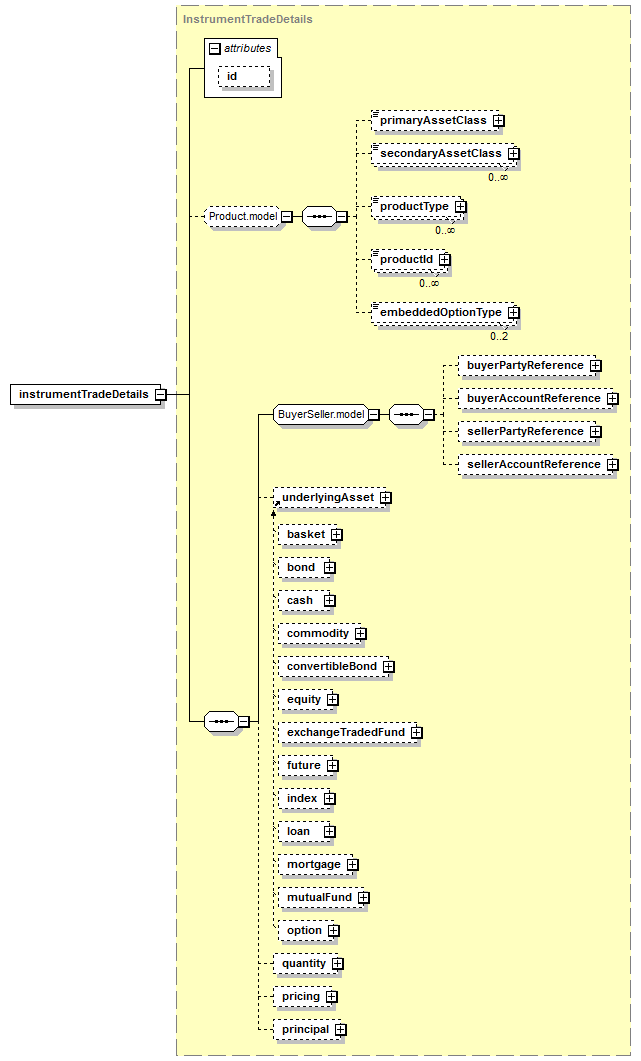

Content Model Diagram
XML Representation Summary
<instrumentTradeDetails

 =
xsd:ID

>

Content:
</instrumentTradeDetails>
Content model elements (13):
primaryAssetClass (defined in Product.model group),
productType (defined in Product.model group),
May contain elements by substitutions (13):
basket, bond, cash, commodity, convertibleBond, equity, exchangeTradedFund, future, index, loan, mortgage, mutualFund, option
May be included in elements by substitutions (17):
originalTrade (defined in TradeChangeBase complexType),
resultingTrade (defined in TradeChangeBase complexType),
trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in TradeValuationItem complexType),
Annotation
A type to hold trades of multiply-traded instruments. Typically this will be used to represent the trade resulting from a physically-settled OTC product where the underlying is a security, for example the exercise of a physically-settled option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="instrumentTradeDetails" substitutionGroup="product" type="InstrumentTradeDetails"/>
