group "TradeNotionalChange.model"
Namespace:
Content:
Defined:
Includes:
definitions of 6 elements
Used:

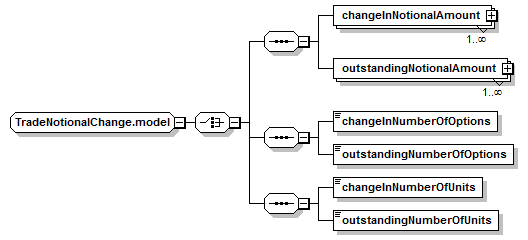

Content Model Diagram
Complex Content Model
Content Model Elements (6):
changeInNotionalAmount (defined in TradeNotionalChange.model group),
changeInNumberOfOptions (defined in TradeNotionalChange.model group),
changeInNumberOfUnits (defined in TradeNotionalChange.model group),
outstandingNotionalAmount (defined in TradeNotionalChange.model group),
outstandingNumberOfOptions (defined in TradeNotionalChange.model group),
outstandingNumberOfUnits (defined in TradeNotionalChange.model group)
Known Usage Locations
Annotation
DEPRECATED. A structure describing a change to the trade notional.
XML Source (w/o annotations (7); see within schema source)
<xsd:group fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="The model could not provide support for linking notionals with product legs. Also, there was limitation in the existing increase and termination events which don&#8217;t allow the reporting of both change of units or change of notional amount as required for dividend swaps, for example. Instead, sizeChange, should be used." name="TradeNotionalChange.model">
<xsd:choice>
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="changeInNotionalAmount" type="NonNegativeMoney"/>
<xsd:element maxOccurs="unbounded" name="outstandingNotionalAmount" type="NonNegativeMoney"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="changeInNumberOfOptions" type="xsd:decimal"/>
<xsd:element name="outstandingNumberOfOptions" type="xsd:decimal"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="changeInNumberOfUnits" type="xsd:decimal"/>
<xsd:element name="outstandingNumberOfUnits" type="xsd:decimal"/>
</xsd:sequence>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 6/6)
changeInNotionalAmount
Type:
NonNegativeMoney, complex content
Specifies the fixed amount by which the Notional Amount changes. The direction of the change (increase or decrease) is specified by the event type (Termination => reduction, Increase => greater.)
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="changeInNotionalAmount" type="NonNegativeMoney"/>

changeInNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the Number of Options changes
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="changeInNumberOfOptions" type="xsd:decimal"/>

changeInNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the Number of Units changes
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="changeInNumberOfUnits" type="xsd:decimal"/>

outstandingNotionalAmount
Type:
NonNegativeMoney, complex content
Specifies the Notional amount after the Change
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="outstandingNotionalAmount" type="NonNegativeMoney"/>

outstandingNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Options after the Change.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNumberOfOptions" type="xsd:decimal"/>

outstandingNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Units
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNumberOfUnits" type="xsd:decimal"/>
