complexType "RequestClearingEligibility"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 15 elements
Defined:
globally in fpml-clearing-processes-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

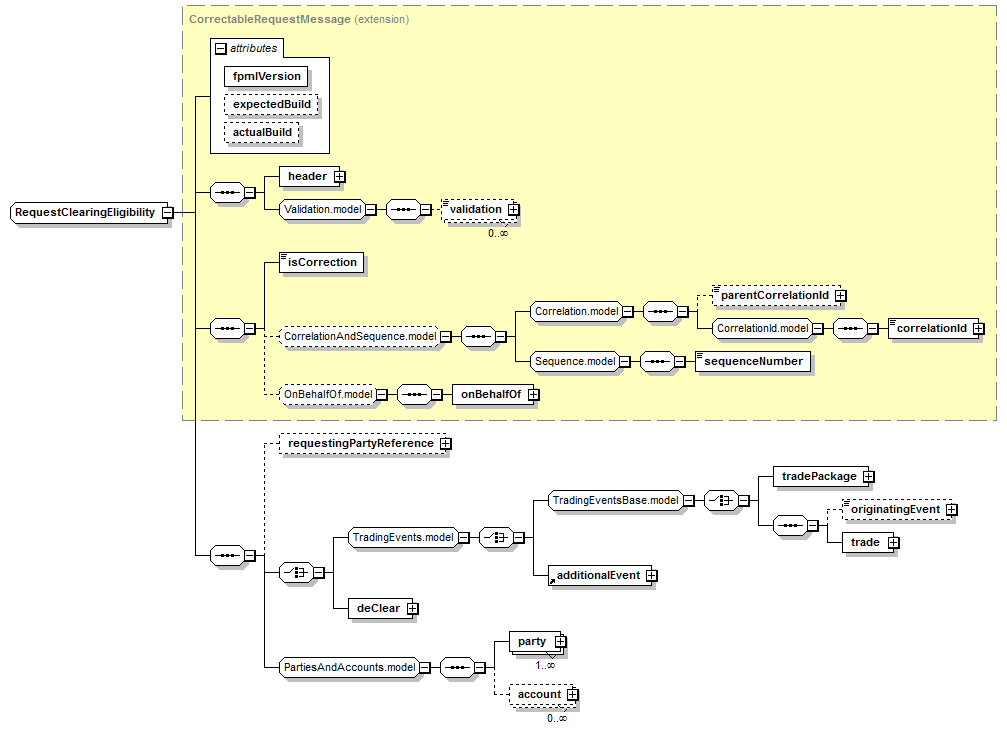

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"9"

>

Content:
header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, requestingPartyReference?, (tradePackage | (originatingEvent?, trade) | additionalEvent | deClear), party+, account*
</...>
Content Model Elements (15):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
trade (defined in TradingEventsBase.model group),
All Direct / Indirect Based Elements (1):
requestClearingEligibility
Known Usage Locations
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              RequestClearingEligibility
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="RequestClearingEligibility">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:element fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="Deprecated in favor of existing onBehalfOf element." minOccurs="0" name="requestingPartyReference" type="PartyReference"/>
<xsd:choice>
<xsd:group ref="TradingEvents.model"/>
<xsd:element name="deClear" type="DeClear"/>
</xsd:choice>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/15)
deClear
Type:
DeClear, complex content
A structure describing a declear event. The deClear event allows a firm to request that a trade be removed from clearing, or a clearing service to request consent for this, or to report that it has been done.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deClear" type="DeClear"/>
requestingPartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="Deprecated in favor of existing onBehalfOf element." minOccurs="0" name="requestingPartyReference" type="PartyReference"/>
