group "CommodityWeatherOption.model"
Namespace:
Content:
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 6 elements
Used:

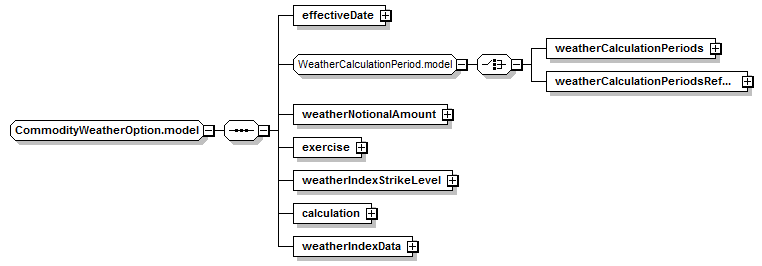

Content Model Diagram
Complex Content Model
Content Model Elements (8):
Known Usage Locations
Annotation
Described Weather Index Option component. Weather Index Option transactions are OTC derivative transactions which settle financially based on an index calculated from observations of temperature and precipitation at weather stations throughout the world. Sub-Annex C of the 2005 ISDA Commodity Definitions provides definitions and terms for a number of types of weather indices. These indices include: HDD (heating degree days), CDD (cooling degree days), CPD (critical precipitation days). Weather Index Option Transactions results in a cash flow to the buyer depending on the relationship between the Settlement Level to the Weather Index Strike Level.
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="CommodityWeatherOption.model">
<xsd:sequence>
<xsd:element name="effectiveDate" type="AdjustableOrRelativeDate"/>
<xsd:element name="weatherNotionalAmount" type="NonNegativeMoney"/>
<xsd:element name="exercise" type="CommodityExercise"/>
<xsd:element name="weatherIndexStrikeLevel" type="WeatherIndex"/>
<xsd:element name="calculation" type="WeatherLegCalculation"/>
<xsd:element name="weatherIndexData" type="WeatherIndexData"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 6/8)
calculation
Type:
WeatherLegCalculation, complex content
Contains parameters which figure in the calculation of payments on a Weather Index Option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="calculation" type="WeatherLegCalculation"/>

effectiveDate
Type:
AdjustableOrRelativeDate, complex content
Effective date of an option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="effectiveDate" type="AdjustableOrRelativeDate"/>

exercise
Type:
CommodityExercise, complex content
XML Source (see within schema source)
<xsd:element name="exercise" type="CommodityExercise"/>

weatherIndexData
Type:
WeatherIndexData, complex content
Specifies where the data (e.g. CPD) have been collected, an actual physical reference point (weather station) and various fall back arrangements.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="weatherIndexData" type="WeatherIndexData"/>

weatherIndexStrikeLevel
Type:
WeatherIndex, complex content
Weather Index strike price level is specified in terms of weather index units (e.g. 1 Days, 3 Inches, etc.)
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="weatherIndexStrikeLevel" type="WeatherIndex"/>

weatherNotionalAmount
Type:
NonNegativeMoney, complex content
XML Source (see within schema source)
<xsd:element name="weatherNotionalAmount" type="NonNegativeMoney"/>
