complexType "RequestExecutionRetracted"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 13 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

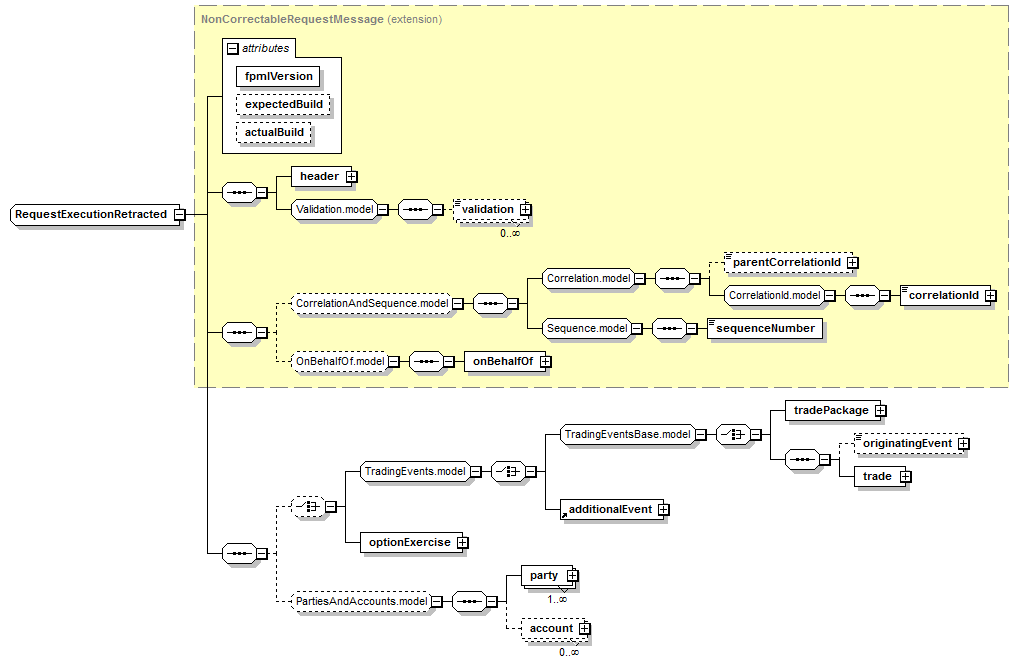

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"9"

>

Content:
header, validation*, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, (tradePackage | (originatingEvent?, trade) | additionalEvent | optionExercise)?, (party+, account*)?
</...>
Content Model Elements (13):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
trade (defined in TradingEventsBase.model group),
All Direct / Indirect Based Elements (1):
requestExecutionRetracted
Known Usage Locations
Annotation
A message withdrawing a request that an order be executed.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          NonCorrectableRequestMessage (extension)
              RequestExecutionRetracted
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="RequestExecutionRetracted">
<xsd:complexContent>
<xsd:extension base="NonCorrectableRequestMessage">
<xsd:sequence>
<xsd:choice minOccurs="0">
<xsd:group ref="TradingEvents.model"/>
<xsd:element name="optionExercise" type="OptionExercise"/>
</xsd:choice>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/13)
optionExercise
Type:
OptionExercise, complex content
A structure describing an option exercise event. The optionExercise event supports partial exercise (specify the number of options or amount to exercise), full exercise (use fullExercise flag), as well as the option to request options not to be exercised.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="optionExercise" type="OptionExercise"/>
