group "ClearingResults.model"
Namespace:
Content:
Defined:
Includes:
definitions of 4 elements
Used:

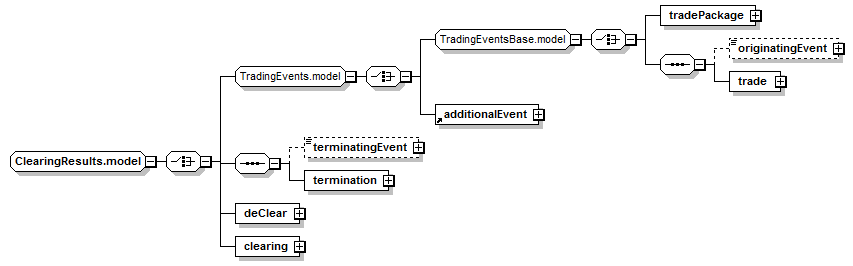

Content Model Diagram
Complex Content Model
Content Model Elements (8):
trade (defined in TradingEventsBase.model group),
Known Usage Locations
Annotation
Events/Results that are applicable to clearing processes.
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="ClearingResults.model">
<xsd:choice>
<xsd:group ref="TradingEvents.model"/>
<xsd:sequence>
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>
<xsd:element name="termination" type="TradeNotionalChange"/>
</xsd:sequence>
<xsd:element name="deClear" type="DeClear"/>
<xsd:element name="clearing" type="Clearing"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 4/8)
clearing
Type:
Clearing, complex content
XML Source (see within schema source)
<xsd:element name="clearing" type="Clearing"/>

deClear
Type:
DeClear, complex content
A structure describing a declear event. The deClear event allows a firm to request that a trade be removed from clearing, or a clearing service to request consent for this, or to report that it has been done.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deClear" type="DeClear"/>

terminatingEvent
Type:
TerminatingEvent, simple content
This may be used to describe why a trade was terminated.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>

termination
Type:
TradeNotionalChange, complex content
XML Source (see within schema source)
<xsd:element name="termination" type="TradeNotionalChange"/>
