complexType "AbstractServicingNotification"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 10 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 2 locations

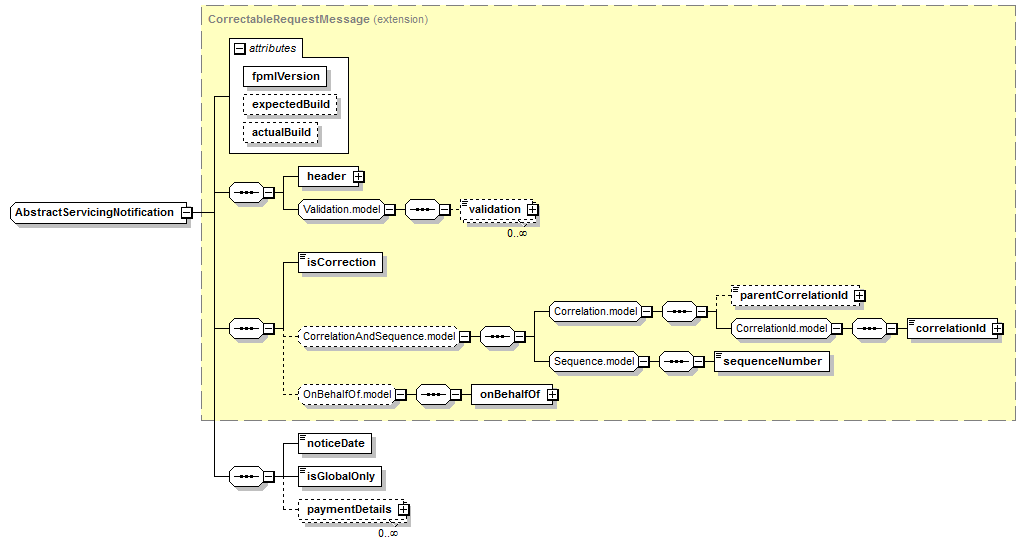

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"9"

>

Content:
header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, noticeDate, isGlobalOnly, paymentDetails*
</...>
Content Model Elements (10):
correlationId,
header (defined in RequestMessage complexType),
isCorrection,
isGlobalOnly,
noticeDate,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
paymentDetails (defined in AbstractServicingNotification complexType),
sequenceNumber (defined in Sequence.model group),
validation
Known Direct Subtypes (2):
AbstractContractNotification, AbstractFacilityNotification
Known Indirect Subtypes (11):
AccrualOptionChangeNotification, AccruingFeeChangeNotification, AccruingFeePaymentNotification, AccruingPikPaymentNotification, FacilityNotification, FacilityRateChangeNotification, LcNotification, LoanContractNotification, NonRecurringFeePaymentNotification, PrepaymentNotification, RolloverNotification
All Direct / Indirect Based Elements (11):
accrualOptionChangeNotification, accruingFeeChangeNotification, accruingFeePaymentNotification, accruingPikPaymentNotification, facilityNotification, facilityRateChangeNotification, lcNotification, loanContractNotification, nonRecurringFeePaymentNotification, prepaymentNotification, rolloverNotification
Known Usage Locations
Annotation
An abstract base type for all syndicated loan servicing notifications; the wrapper for loan events which occur through the life-cycle of a deal.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              AbstractServicingNotification
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType abstract="true" name="AbstractServicingNotification">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:element name="noticeDate" type="xsd:date"/>
<xsd:element name="isGlobalOnly" type="xsd:boolean"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentDetails" type="Payment"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/10)
isGlobalOnly
Type:
xsd:boolean, predefined, simple content
Indicates whether the embedded business events 'global', i.e. NOT lender specific.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="isGlobalOnly" type="xsd:boolean"/>
noticeDate
Type:
xsd:date, predefined, simple content
The business date on which the notice is valid (and was communicated).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="noticeDate" type="xsd:date"/>
paymentDetails
Type:
Payment, complex content
The payments/wiring instructions associated with all embedded loan events.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentDetails" type="Payment"/>
