complexType "FacilityOutstandingsPosition"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

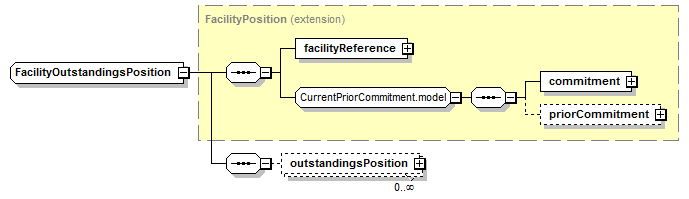

Content Model Diagram
XML Representation Summary
<...>

Content:
facilityReference, commitment, priorCommitment?, outstandingsPosition*
</...>
Content Model Elements (4):
commitment,
facilityReference (defined in FacilityPosition complexType),
outstandingsPosition,
priorCommitment
All Direct / Indirect Based Elements (2):
facilityOutstandingsPosition (defined in AbstractContractNotification complexType),
facilityOutstandingsPosition (in facilityOutstandingsPositionStatement)
Known Usage Locations
Annotation
Represents current/prior facility commitment and outstanding amounts on both the global and lender position levels.
Type Definition Detail
Type Derivation Tree
FacilityPosition (extension)
  FacilityOutstandingsPosition
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="FacilityOutstandingsPosition">
<xsd:complexContent>
<xsd:extension base="FacilityPosition">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="outstandingsPosition" type="OutstandingsPosition"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
outstandingsPosition
Type:
OutstandingsPosition, complex content
A structure used to define all positions held by the lender at the loan contract level. This structure is design to hold either some or all loan contracts.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="outstandingsPosition" type="OutstandingsPosition"/>
