complexType "FloatingRateOptionBase"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 7 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 2 locations

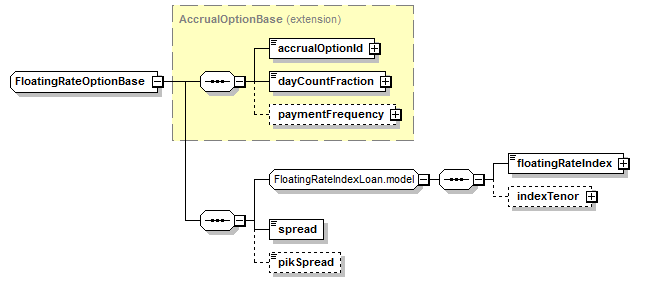

Content Model Diagram
XML Representation Summary
<...>

Content:
accrualOptionId, dayCountFraction, paymentFrequency?, floatingRateIndex, indexTenor?, spread, pikSpread?
</...>
Content Model Elements (7):
accrualOptionId,
dayCountFraction (defined in AccrualOptionBase complexType),
floatingRateIndex (defined in FloatingRateIndexLoan.model group),
indexTenor (defined in FloatingRateIndexLoan.model group),
paymentFrequency (defined in AccrualOptionBase complexType),
pikSpread (defined in FloatingRateOptionBase complexType),
spread (defined in FloatingRateOptionBase complexType)
Known Direct Subtypes (2):
FloatingRateAccrual, FloatingRateOption
All Direct / Indirect Based Elements (3):
floatingRateAccrual,
floatingRateOption (defined in FacilityOptionsFeesAndRates.model group),
floatingRateOption (defined in FloatingRateOptionChange complexType)
Known Usage Locations
Annotation
Specifies the abstract type underlying a floating rate cash accrual option.
Type Definition Detail
Type Derivation Tree
AccrualOptionBase (extension)
  FloatingRateOptionBase
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="FloatingRateOptionBase">
<xsd:complexContent>
<xsd:extension base="AccrualOptionBase">
<xsd:sequence>
<xsd:group ref="FloatingRateIndexLoan.model"/>
<xsd:element name="spread" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="pikSpread" type="xsd:decimal"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/7)
pikSpread
Type:
xsd:decimal, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="pikSpread" type="xsd:decimal"/>
spread
Type:
xsd:decimal, predefined, simple content
XML Source (see within schema source)
<xsd:element name="spread" type="xsd:decimal"/>
