complexType "FundingFeePayment" | XML Schema Documentation

complexType "FundingFeePayment"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 12 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Used:	at 1 location

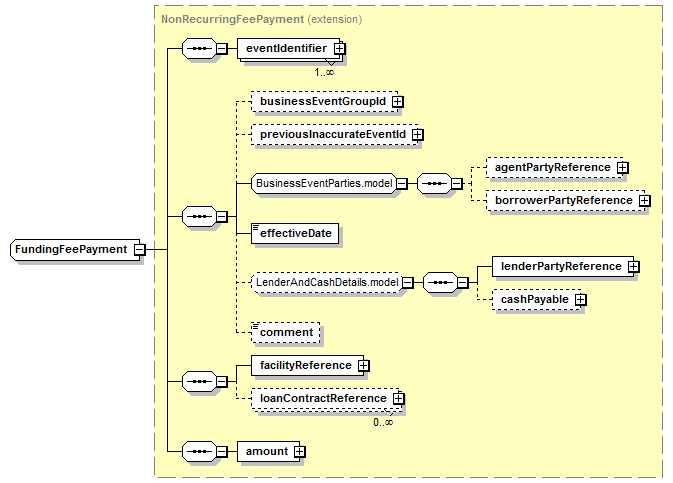

Content Model Diagram

XML Representation Summary

<...>

Content:

eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference?, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, facilityReference, loanContractReference*, amount

</...>

Content Model Elements (12):

agentPartyReference (defined in BusinessEventParties.model group),

amount (defined in NonRecurringFeePayment complexType),

borrowerPartyReference (defined in BusinessEventParties.model group),

businessEventGroupId (defined in LoanEvent complexType),

effectiveDate (defined in LoanEvent complexType),

eventIdentifier (defined in AbstractEventRequireId complexType),

facilityReference (defined in FacilityContractEvent complexType),

lenderPartyReference,

loanContractReference (defined in FacilityContractEvent complexType),

previousInaccurateEventId

All Direct / Indirect Based Elements (1):

fundingFeePayment

Known Usage Locations

As direct type of elements (1):

fundingFeePayment

Annotation

A fee associated with the funding requirements for given facility.

Type Definition Detail

Type Derivation Tree

AbstractEventRequireId (extension)

LoanEvent (extension)

FacilityContractEvent (extension)

NonRecurringFeePayment (extension)

FundingFeePayment

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="FundingFeePayment">

<xsd:complexContent>

<xsd:extension base="NonRecurringFeePayment"/>

</xsd:complexContent>

</xsd:complexType>
