complexType "LcFxRevaluation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 12 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

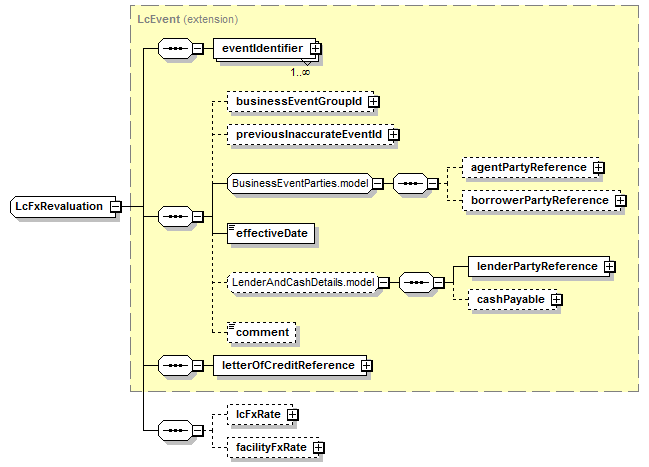

Content Model Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference?, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, letterOfCreditReference, lcFxRate?, facilityFxRate?
</...>
Content Model Elements (12):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId (defined in LoanEvent complexType),
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityFxRate (in lcFxRevaluation),
lcFxRate (in lcFxRevaluation),
lenderPartyReference,
letterOfCreditReference (defined in LcEvent complexType),
previousInaccurateEventId
All Direct / Indirect Based Elements (1):
lcFxRevaluation
Known Usage Locations
Annotation
An event representing a change in either the [L/C -> Facility] or [Accrual -> L/C] FX rates (or both) on an outstanding letter of credit.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      LcEvent (extension)
          LcFxRevaluation
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="LcFxRevaluation">
<xsd:complexContent>
<xsd:extension base="LcEvent">
<xsd:sequence>
<xsd:element minOccurs="0" name="lcFxRate" type="FxTerms"/>
<xsd:element minOccurs="0" name="facilityFxRate" type="FxTerms"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/12)
facilityFxRate
Type:
FxTerms, complex content
Defines exchange rate between the letter of credit and facility.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="facilityFxRate" type="FxTerms"/>
lcFxRate
Type:
FxTerms, complex content
Defines exchange rate between the letter of credit accrual and letter of credit currencies.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="lcFxRate" type="FxTerms"/>
