complexType "LcRateChange"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 11 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

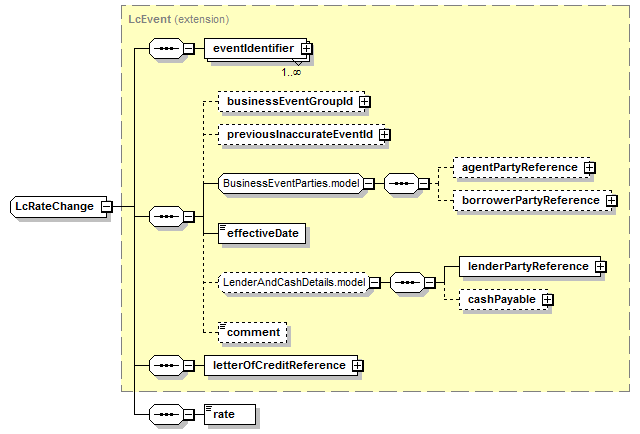

Content Model Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference?, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, letterOfCreditReference, rate
</...>
Content Model Elements (11):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId (defined in LoanEvent complexType),
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
lenderPartyReference,
letterOfCreditReference (defined in LcEvent complexType),
previousInaccurateEventId,
rate (in lcRateChange)
All Direct / Indirect Based Elements (1):
lcRateChange
Known Usage Locations
Annotation
An event representing a change in the rate on an outstanding letter of credit.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      LcEvent (extension)
          LcRateChange
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="LcRateChange">
<xsd:complexContent>
<xsd:extension base="LcEvent">
<xsd:sequence>
<xsd:element name="rate" type="xsd:decimal"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/11)
rate
Type:
xsd:decimal, predefined, simple content
XML Source (see within schema source)
<xsd:element name="rate" type="xsd:decimal"/>
