complexType "OutstandingContractsStatement"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 13 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

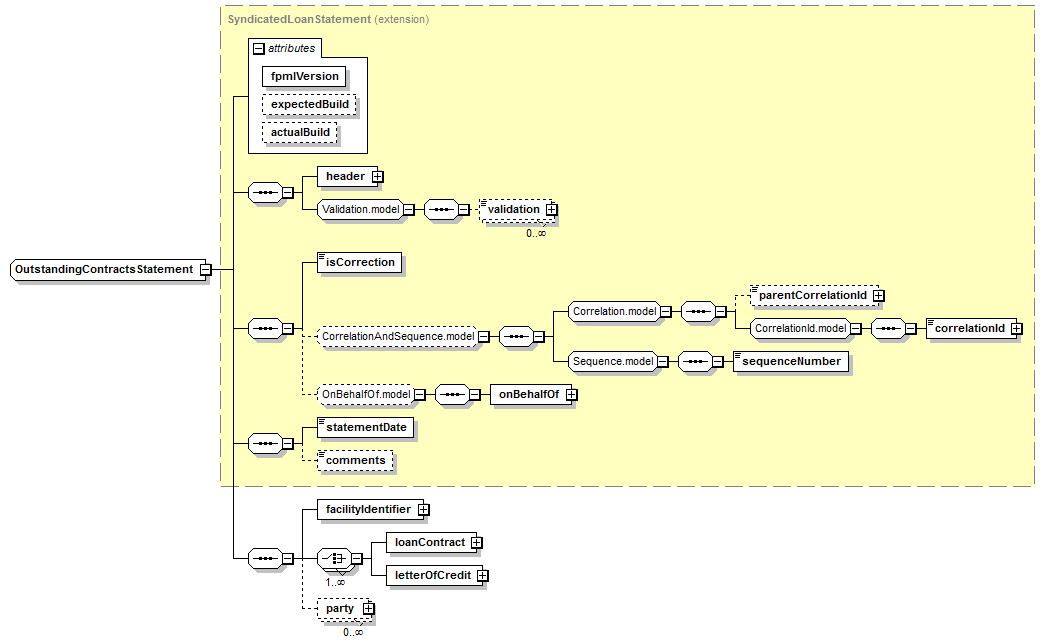

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"9"

>

Content:
header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, statementDate, comments?, facilityIdentifier, (loanContract | letterOfCredit)+, party*
</...>
Content Model Elements (13):
comments (defined in SyndicatedLoanStatement complexType),
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
outstandingContractsStatement
Known Usage Locations
Annotation
A collection of outstanding loan contract and/or letter of credit structures belonging to a single facility.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              SyndicatedLoanStatement (extension)
                  OutstandingContractsStatement
XML Source (w/o annotations (6); see within schema source)
<xsd:complexType name="OutstandingContractsStatement">
<xsd:complexContent>
<xsd:extension base="SyndicatedLoanStatement">
<xsd:sequence>
<xsd:element name="facilityIdentifier" type="FacilityIdentifier"/>
<xsd:choice maxOccurs="unbounded">
<xsd:element name="loanContract" type="LoanContract"/>
<xsd:element name="letterOfCredit" type="LetterOfCredit"/>
</xsd:choice>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="party" type="Party"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/13)
facilityIdentifier
Type:
FacilityIdentifier, complex content
The facility to which the loan contracts and/or letter of credits belong.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="facilityIdentifier" type="FacilityIdentifier"/>
letterOfCredit
Type:
LetterOfCredit, complex content
A collection of letter of credits.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="letterOfCredit" type="LetterOfCredit"/>
loanContract
Type:
LoanContract, complex content
A collection of loan contracts.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="loanContract" type="LoanContract"/>
party
Type:
Party, complex content
A legal entity or a subdivision of a legal entity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="party" type="Party"/>
