complexType "Revolver"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 27 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Used:	at 1 location

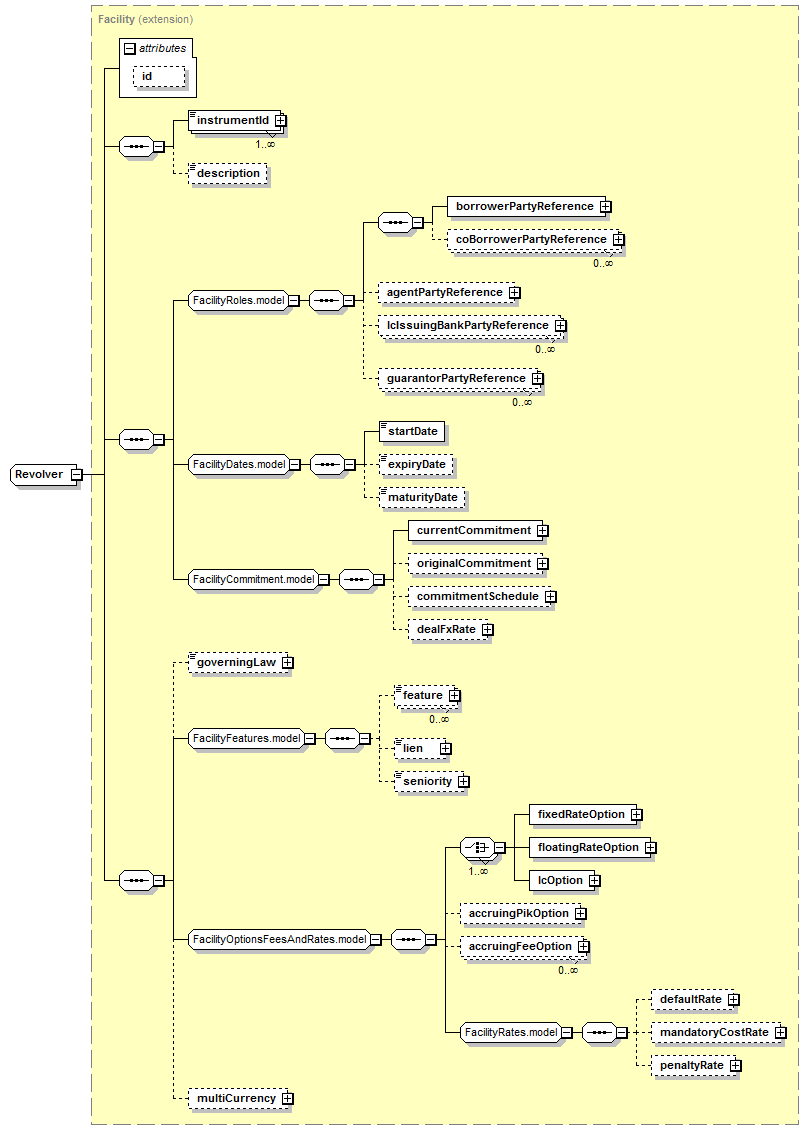

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

</...>

Content Model Elements (27):

accruingFeeOption (defined in FacilityOptionsFeesAndRates.model group),

accruingPikOption (defined in FacilityOptionsFeesAndRates.model group),

agentPartyReference (defined in FacilityRoles.model group),

borrowerPartyReference (defined in FacilityRoles.model group),

coBorrowerPartyReference,

commitmentSchedule (defined in FacilityCommitment.model group),

currentCommitment,

dealFxRate,

defaultRate,

description (defined in IdentifiedAsset complexType),

expiryDate (defined in FacilityDates.model group),

feature (defined in FacilityFeatures.model group),

fixedRateOption (defined in FacilityOptionsFeesAndRates.model group),

floatingRateOption (defined in FacilityOptionsFeesAndRates.model group),

governingLaw (defined in Facility complexType),

guarantorPartyReference (defined in FacilityRoles.model group),

instrumentId (defined in IdentifiedAsset complexType),

lcIssuingBankPartyReference,

lcOption (defined in FacilityOptionsFeesAndRates.model group),

lien (defined in FacilityFeatures.model group),

mandatoryCostRate (defined in FacilityRates.model group),

maturityDate (defined in FacilityDates.model group),

multiCurrency,

originalCommitment,

penaltyRate,

seniority (defined in FacilityFeatures.model group),

startDate (defined in FacilityDates.model group)

All Direct / Indirect Based Elements (1):

revolver

Known Usage Locations

As direct type of elements (1):

revolver

Annotation

A facility which allows a flexible line of credit which can be drawn and repaid multiple times over the life of the facility.

Type Definition Detail

Type Derivation Tree

Asset (extension)

IdentifiedAsset (extension)

FacilityIdentifier (extension)

FacilitySummary (extension)

Facility (extension)

Revolver

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="Revolver">

<xsd:complexContent>

<xsd:extension base="Facility"/>

</xsd:complexContent>

</xsd:complexType>
