element <interestPayment> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
InterestPayment
Content:
complex, 16 elements
Subst.Gr:
may substitute for element loanContractEventGroup
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Used:
never

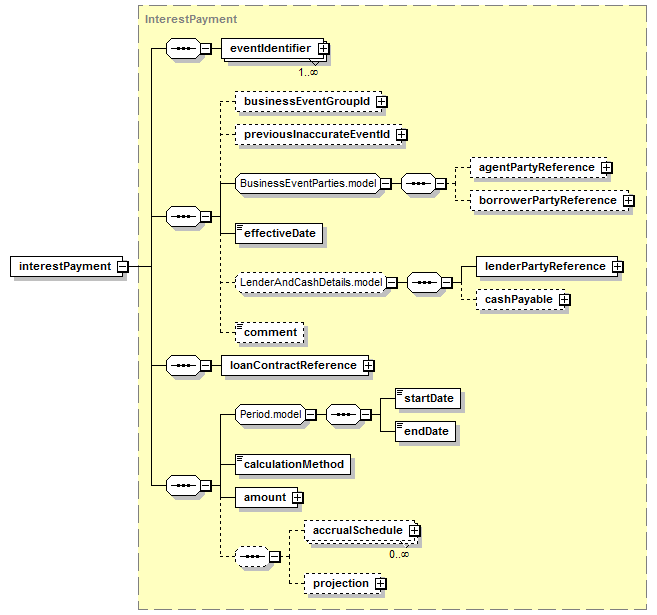

Content Model Diagram
XML Representation Summary
<interestPayment>

Content:
eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference?, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, loanContractReference, startDate, endDate, calculationMethod, amount, (accrualSchedule*, projection?)?
</interestPayment>
Content model elements (16):
accrualSchedule (defined in InterestPayment complexType),
agentPartyReference (defined in BusinessEventParties.model group),
amount (defined in InterestPayment complexType),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId (defined in LoanEvent complexType),
calculationMethod (defined in InterestPayment complexType),
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
endDate (defined in Period.model group),
eventIdentifier (defined in AbstractEventRequireId complexType),
lenderPartyReference,
loanContractReference (defined in LoanContractEvent complexType),
previousInaccurateEventId,
projection (defined in InterestPayment complexType),
startDate (defined in Period.model group)
May be included in elements by substitutions (2):
loanContractNotification, loanContractNotificationRetracted
XML Source (see within schema source)
<xsd:element name="interestPayment" substitutionGroup="loanContractEventGroup" type="InterestPayment"/>
