group "BondCollateral.model"
Namespace:
Content:
Defined:
globally in fpml-repo-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:

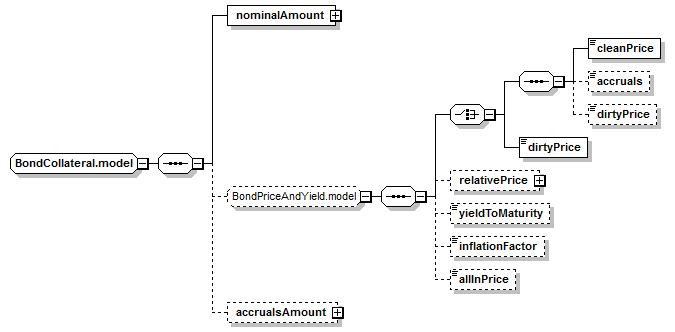

Content Model Diagram
Complex Content Model
Content Model Elements (10):
Known Usage Locations
Annotation
A group which has Collateral elements.
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="BondCollateral.model">
<xsd:sequence>
<xsd:element name="nominalAmount" type="Money"/>
<xsd:group minOccurs="0" ref="BondPriceAndYield.model"/>
<xsd:element minOccurs="0" name="accrualsAmount" type="Money"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/10)
accrualsAmount
Type:
Money, complex content
Accruals expressed as amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="accrualsAmount" type="Money"/>

nominalAmount
Type:
Money, complex content
Total nominal amount of the given bonds used as collateral.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="nominalAmount" type="Money"/>
