group "PricingInputDates.model"
Namespace:
Content:
Defined:
Includes:
definitions of 5 elements
Used:

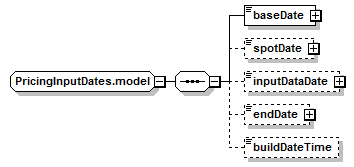

Content Model Diagram
Complex Content Model
Content Model Elements (5):
endDate (defined in PricingInputDates.model group),
Known Usage Locations
Annotation
The dates that might be relevant for a pricing input, e.g. what valuation date it applies to, when it was built, when the data comes from, etc..
XML Source (w/o annotations (6); see within schema source)
<xsd:group name="PricingInputDates.model">
<xsd:sequence>
<xsd:element name="baseDate" type="IdentifiedDate"/>
<xsd:element minOccurs="0" name="spotDate" type="IdentifiedDate"/>
<xsd:element minOccurs="0" name="inputDataDate" type="IdentifiedDate"/>
<xsd:element minOccurs="0" name="endDate" type="IdentifiedDate"/>
<xsd:element minOccurs="0" name="buildDateTime" type="xsd:dateTime"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 5/5)
baseDate
Type:
IdentifiedDate, simple content
The base date for which the structure applies, i.e. the curve date. Normally this will align with the valuation date.
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="baseDate" type="IdentifiedDate"/>

buildDateTime
Type:
xsd:dateTime, predefined, simple content
The date and time when the pricing input was generated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="buildDateTime" type="xsd:dateTime"/>

endDate
Type:
IdentifiedDate, simple content
The last date for which data is supplied in this pricing input.
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="endDate" type="IdentifiedDate"/>

inputDataDate
Type:
IdentifiedDate, simple content
The date from which the input data used to construct the pricing input was obtained. Often the same as the baseDate, but sometimes the pricing input may be "rolled forward", in which input data from one date is used to generate a curve for a later date.
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="inputDataDate" type="IdentifiedDate"/>

spotDate
Type:
IdentifiedDate, simple content
The spot settlement date for which the structure applies, normally 0-2 days after the base date. The difference between the baseDate and the spotDate is termed the settlement lag, and is sometimes called "days to spot".
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="spotDate" type="IdentifiedDate"/>
