group "AdjustableDate.model"
Namespace:
Content:
Defined:
Includes:
definitions of 3 elements
Used:

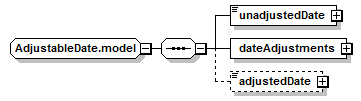

Content Model Diagram
Complex Content Model
Content Model Elements (3):
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="AdjustableDate.model">
<xsd:sequence>
<xsd:element name="unadjustedDate" type="IdentifiedDate"/>
<xsd:element name="dateAdjustments" type="BusinessDayAdjustments"/>
<xsd:element minOccurs="0" name="adjustedDate" type="IdentifiedDate"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
adjustedDate
Type:
IdentifiedDate, simple content
The date once the adjustment has been performed. (Note that this date may change if the business center holidays change).
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="adjustedDate" type="IdentifiedDate"/>

dateAdjustments
Type:
BusinessDayAdjustments, complex content
The business day convention and financial business centers used for adjusting the date if it would otherwise fall on a day that is not a business date in the specified business centers.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="dateAdjustments" type="BusinessDayAdjustments"/>

unadjustedDate
Type:
IdentifiedDate, simple content
A date subject to adjustment.
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="unadjustedDate" type="IdentifiedDate"/>
