XML Schema Documentation

Super-types:	None
Sub-types:	None

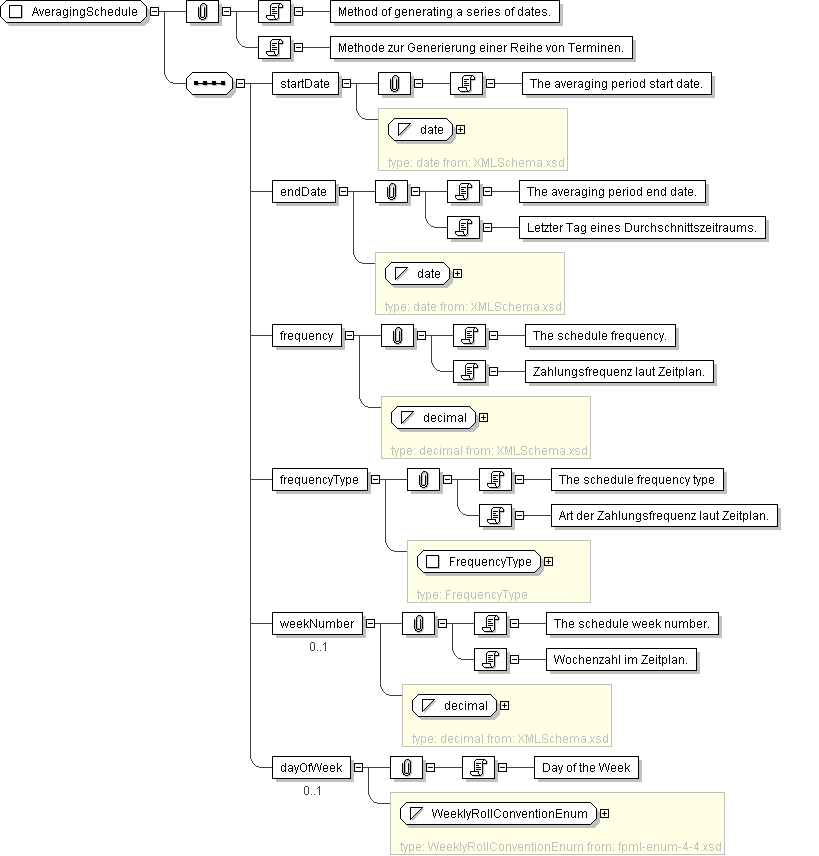

Name	AveragingSchedule
Used by (from the same schema document)	Complex Type AveragingPeriod , Complex Type TriggerEvent
Abstract	no
Documentation	Method of generating a series of dates. Methode zur Generierung einer Reihe von Terminen.

XML Instance Representation

<...>

<startDate> xsd:date </startDate> [1]

'The averaging period start date.'

<endDate> xsd:date </endDate> [1]

'The averaging period end date.','Letzter Tag eines Durchschnittszeitraums.'

<frequency> xsd:decimal </frequency> [1]

'The schedule frequency.','Zahlungsfrequenz laut Zeitplan.'

<frequencyType> FrequencyType </frequencyType> [1]

'The schedule frequency type','Art der Zahlungsfrequenz laut Zeitplan.'

<weekNumber> xsd:decimal </weekNumber> [0..1]

'The schedule week number.','Wochenzahl im Zeitplan.'

<dayOfWeek> WeeklyRollConventionEnum </dayOfWeek> [0..1]

'Day of the Week'

</...>

Schema Component Representation

<xsd:complexType name="AveragingSchedule">

<xsd:sequence>

<xsd:element name="startDate" type=" xsd:date "/>

<xsd:element name="endDate" type=" xsd:date "/>

<xsd:element name="frequency" type=" xsd:decimal "/>

<xsd:element name="frequencyType" type=" FrequencyType "/>

<xsd:element name="weekNumber" type=" xsd:decimal " minOccurs="0"/>

<xsd:element name="dayOfWeek" type=" WeeklyRollConventionEnum " minOccurs="0"/>

</xsd:sequence>

</xsd:complexType>
