XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	BestFitTrade
Abstract	no
Documentation	A type used to record the differences between the current trade and another indicated trade.

XML Instance Representation

<...>

<tradeIdentifier> TradeIdentifier </tradeIdentifier> [1]

'The identifier for the trade compared against.'

<differences> TradeDifference </differences> [0..*]

'An optional set of detailed difference records.'

</...>

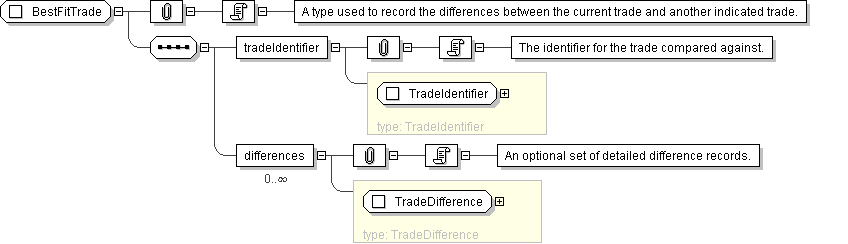

Diagram

Schema Component Representation

<xsd:complexType name="BestFitTrade">

<xsd:sequence>

<xsd:element name="tradeIdentifier" type=" TradeIdentifier "/>

<xsd:element name="differences" type=" TradeDifference " minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:complexType>
