XML Schema Documentation

Super-types:	None
Sub-types:	None

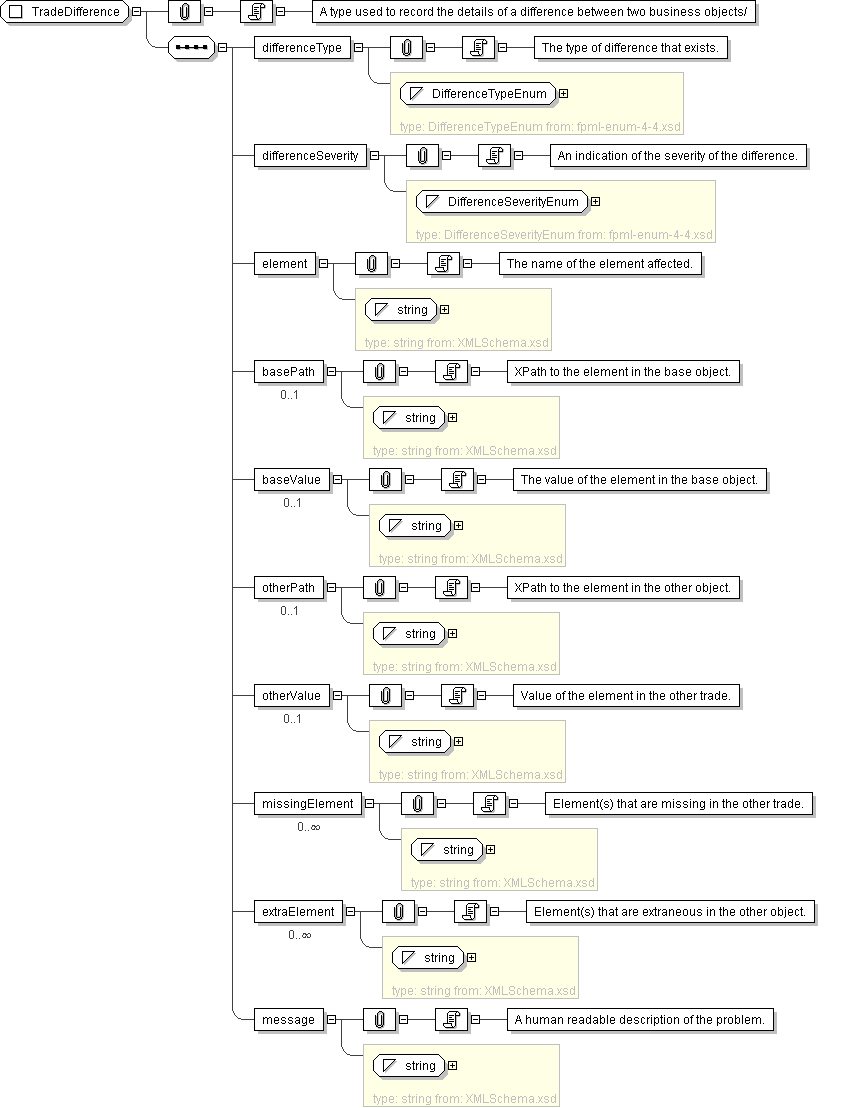

Name	TradeDifference
Used by (from the same schema document)	Complex Type BestFitTrade
Abstract	no
Documentation	A type used to record the details of a difference between two business objects/

XML Instance Representation

<...>

<differenceType> DifferenceTypeEnum </differenceType> [1]

'The type of difference that exists.'

<differenceSeverity> DifferenceSeverityEnum </differenceSeverity> [1]

'An indication of the severity of the difference.'

<element> xsd:string </element> [1]

'The name of the element affected.'

<basePath> xsd:string </basePath> [0..1]

'XPath to the element in the base object.'

<baseValue> xsd:string </baseValue> [0..1]

'The value of the element in the base object.'

<otherPath> xsd:string </otherPath> [0..1]

'XPath to the element in the other object.'

<otherValue> xsd:string </otherValue> [0..1]

'Value of the element in the other trade.'

<missingElement> xsd:string </missingElement> [0..*]

'Element(s) that are missing in the other trade.'

<extraElement> xsd:string </extraElement> [0..*]

'Element(s) that are extraneous in the other object.'

<message> xsd:string </message> [1]

'A human readable description of the problem.'

</...>

Schema Component Representation

<xsd:complexType name="TradeDifference">

<xsd:sequence>

<xsd:element name="differenceType" type=" DifferenceTypeEnum "/>

<xsd:element name="differenceSeverity" type=" DifferenceSeverityEnum "/>

<xsd:element name="element" type=" xsd:string "/>

<xsd:element name="basePath" type=" xsd:string " minOccurs="0"/>

<xsd:element name="baseValue" type=" xsd:string " minOccurs="0"/>

<xsd:element name="otherPath" type=" xsd:string " minOccurs="0"/>

<xsd:element name="otherValue" type=" xsd:string " minOccurs="0"/>

<xsd:element name="missingElement" type=" xsd:string " minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="extraElement" type=" xsd:string " minOccurs="0" maxOccurs="unbounded"/>

<xsd:element name="message" type=" xsd:string "/>

</xsd:sequence>

</xsd:complexType>
