XML Schema Documentation

Name	CommodityNotionalQuantity.model
Used by (from the same schema document)	Complex Type CommodityOption , Complex Type FixedPriceLeg , Complex Type FloatingPriceLeg
Documentation	The different options for specifying the Notional Quantity. A flat notional for the term of the trade may be specified, or else the Notional Quantity per Calculation Period. In the latter case, there must be a notional quantity specified for each Calculation Period, regardless of whether the Notional Quantity changes or remains the same between periods.

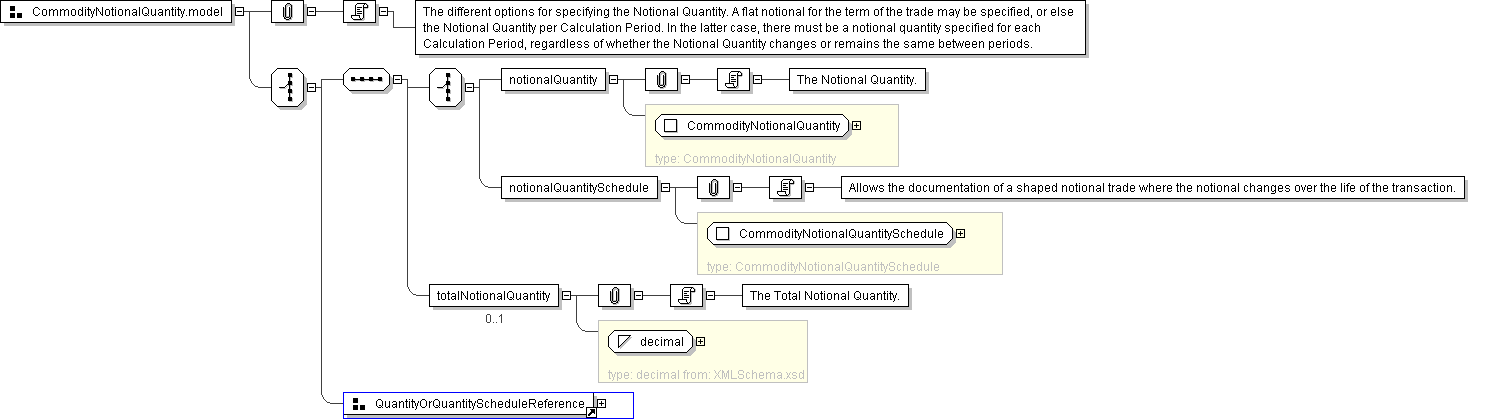

XML Instance Representation

Start Choice [1]
Start Choice [1]

<notionalQuantity> CommodityNotionalQuantity </notionalQuantity> [1]

'The Notional Quantity.'

<notionalQuantitySchedule> CommodityNotionalQuantitySchedule </notionalQuantitySchedule> [1]

'Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.'

End Choice

<totalNotionalQuantity> xsd:decimal </totalNotionalQuantity> [0..1]

'The Total Notional Quantity.'

Start Choice [1]

<quantityReference> QuantityReference </quantityReference> [1]

'A pointer style reference to a quantity defined on another leg.'

<quantityScheduleReference> QuantityScheduleReference </quantityScheduleReference> [1]

'A pointer style reference to a quantity schedule defined on another leg.'

End Choice
End Choice

Schema Component Representation

<xsd:group name="CommodityNotionalQuantity.model">

<xsd:choice>

<xsd:sequence>

<xsd:choice>

<xsd:element name="notionalQuantity" type=" CommodityNotionalQuantity "/>

<xsd:element name="notionalQuantitySchedule" type=" CommodityNotionalQuantitySchedule "/>

</xsd:choice>

<xsd:element name="totalNotionalQuantity" type=" xsd:decimal " minOccurs="0"/>

</xsd:sequence>

<xsd:group ref=" QuantityOrQuantityScheduleReference "/>

</xsd:choice>

</xsd:group>
