XML Schema Documentation

Name	QuantityOrQuantityScheduleReference
Used by (from the same schema document)	Complex Type NonPeriodicFixedPriceLeg , Model Group CommodityNotionalQuantity.model
Documentation	A choice between referencing a quantity or a quantity schedule.

XML Instance Representation

Start Choice [1]

<quantityReference> QuantityReference </quantityReference> [1]

'A pointer style reference to a quantity defined on another leg.'

<quantityScheduleReference> QuantityScheduleReference </quantityScheduleReference> [1]

'A pointer style reference to a quantity schedule defined on another leg.'

End Choice

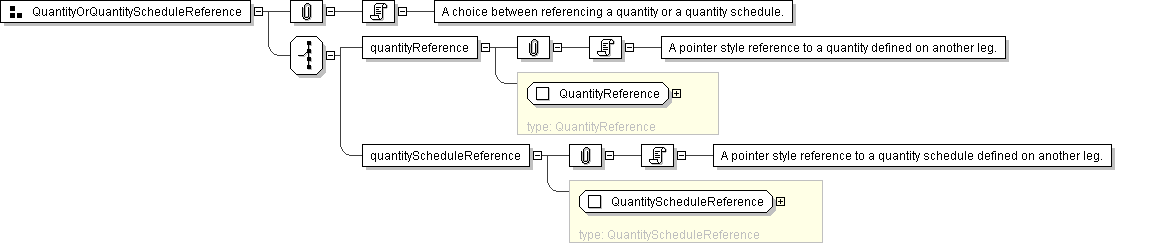

Diagram

Schema Component Representation

<xsd:group name="QuantityOrQuantityScheduleReference">

<xsd:choice>

<xsd:element name="quantityReference" type=" QuantityReference "/>

<xsd:element name="quantityScheduleReference" type=" QuantityScheduleReference "/>

</xsd:choice>

</xsd:group>
